Product Description
Qorvo's TGL2223 is a wideband, 5-bit digital attenuatorusing Qorvo's TQPHT15 production 0.15um GaAspHEMT process. Operating from 0.1 - 31 GHz,
theTGL2223 offers a low LSB of 0.5 dB and supports > 15.5dB of attenuation range with a low RMS step error of <0.5 dB.Using standard,
negative control voltages from -3.3 to -5 V coupled with excellent broadband performance, theTGA2223 is ideal component to support a wide varietyof commercial and military applications.

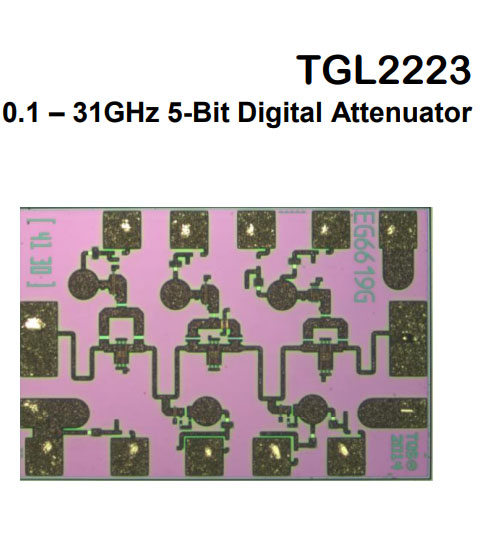

The TGL2223 is in die form, with a compact size of1.180 x 0.800 x 0.100 mm. Both RF ports are matchedto 50 ohms for easy system integration.
Product Features
• Frequency Range: 0.1-31 GHz• 5-Bit Digital Attenuator
• Attenuation Step Size (LSB): 0.5 dB• Attenuation Range: 15.5 dB
• Insertion Loss (Ref. State): 1.8-4.2 dB• RMS Attenuation Error: < 0.9 dB
• RMS Step Error: < 0.4 dB• Control Voltage: -3.3 to -5.0 V
• Die Size: 1.180 x 0.800 x 0.100 mmPerformance is typical across frequency. Pleasereference electrical specification table and data plots formore details.
Applications
• Commercial and Military Radar
• Electronic Warfare
• Satellite Communications
• Point to Point Radio
• General Purpose
Ordering Information
Part No. Description
TGL2223 0.1–31 GHz 5-Bit Digital Attenuator

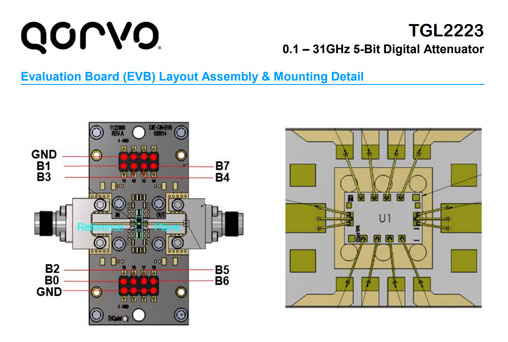

1122552 TGL2223 Evaluation Board
