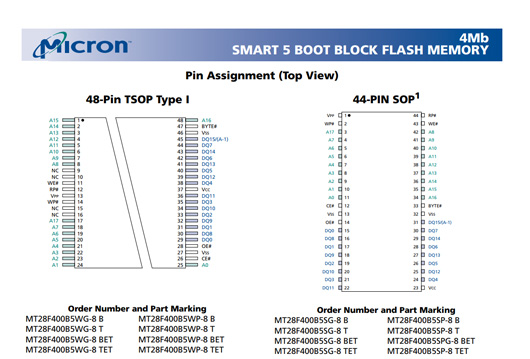

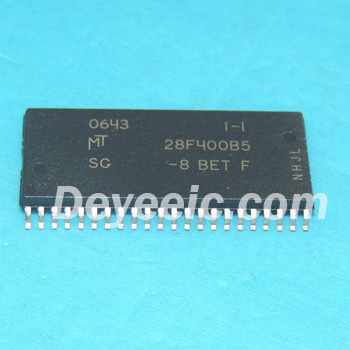

MT28F400B5SG-8BET is a 4-Mbit (512K x 8 / 256K x 16) NOR Flash memory manufactured by Micron Technology.

Functionality

1. Storage Architecture
   • Capacity: 4 Mbit (512K x 8 or 256K x 16 organization).
   • Erasable Blocks: Seven user-definable blocks, including a protected boot block for critical firmware storage.
   • Smart 5 Technology: Operates on 5V ±10% VCC and 5V ±10% VPP for programming/erasing, eliminating the need for external high-voltage supplies.
2. Performance
   • Access Time: 80 ns (read cycle time).
   • Endurance: 100,000 erase cycles, ensuring long-term data retention.
   • Low Power: Standby current ≤5 µA, ideal for battery-powered systems.
3. Security and Protection
   • Hardware Write Protection (WP#): Secures the boot block during normal operations; requires RP# activation for modifications.
   • Voltage Tolerance: Robust against voltage fluctuations (5V ±10%)1.
4. Interface and Compatibility
   • Parallel Interface: Supports 8-bit or 16-bit data buses, compatible with standard microcontroller/microprocessor interfaces.
   • TTL-Compliant I/Os: Directly interfaces with 5V logic systems.
5. Package and Temperature Range
   • Package: 44-pin SOP (Small Outline Package) (SG suffix).
   • Temperature Range: Extended industrial grade (-40°C to +85°C, BET suffix).

Applications

1. Embedded Systems
   • Firmware Storage: Ideal for microcontrollers (MCUs) and DSPs requiring fast code execution, such as in industrial automation, HVAC systems, and robotics.
   • BIOS/UEFI: Used in legacy systems and specialized devices where NOR Flash's direct-execution capability is critical.
2. Industrial Equipment
   • Machine Control: Stores configuration data and real-time control algorithms in factory automation equipment.
   • Networking Devices: Router/switch firmware and boot code storage, ensuring reliable operation in harsh environments.
3. Consumer Electronics
   • Smart Home Devices: Non-volatile storage for IoT sensors, smart meters, and remote controls.
   • Audio/Video Equipment: Firmware for digital TVs, set-top boxes, and portable media players.
4. Automotive Systems
   • In-Vehicle Infotainment (IVI): Stores navigation maps, audio processing code, and driver-assistance system (ADAS) firmware.
   • Engine Control Units (ECUs): Critical for storing real-time engine management software.
5. Medical Devices
   • Diagnostic Equipment: Non-volatile storage for patient data and software in MRI machines, ultrasound devices, and portable monitors.
6. Security and Authentication
   • Secure Boot: The protected boot block safeguards against firmware tampering in applications like access control systems and cryptographic modules.



Below are its specific application scenarios across industries, validated by its technical specifications and real-world use cases:

1. Industrial Automation & Control

• PLCs (Programmable Logic Controllers)
  Stores firmware for machine logic control and motion algorithms. Its 80 ns access time ensures real-time response in factory automation systems.
• SCADA Systems
  Holds configuration data for supervisory control and data acquisition, with hardware write protection (WP#) safeguarding critical control code from accidental modification.
• Industrial Sensors
  Embedded in vibration/temperature sensors for storing calibration parameters and edge-computing algorithms, leveraging its -40°C to +85°C temperature range for harsh environments.

2. Automotive Electronics

• ECUs (Engine Control Units)
  Stores real-time engine management software and diagnostic routines. The protected boot block prevents firmware corruption during OTA updates.
• IVI (In-Vehicle Infotainment)
  Holds navigation maps, audio processing code, and driver-assistance system (ADAS) firmware. Its low standby current (≤5 µA) helps conserve vehicle battery life.
• Body Control Modules
  Manages door locks, lighting, and climate control firmware, ensuring seamless integration with automotive-grade microcontrollers.

3. Consumer Electronics

• Smart Home Devices
  Used in IoT sensors (e.g., smart thermostats) to store connectivity protocols (Zigbee/Thread) and device configuration. The parallel interface simplifies integration with low-power MCUs.
• Portable Media Players
  Stores firmware for audio/video decoding and user interface logic, with 100,000 erase cycles ensuring long-term durability.
• Remote Controls
  Holds IR/radio frequency (RF) communication code and button-mapping data, ideal for battery-operated devices due to its ultra-low power consumption.

4. Medical Equipment

• Diagnostic Tools (MRI/Ultrasound)
  Stores patient data and image processing algorithms, adhering to extended temperature tolerance for hospital environments.
• Portable Monitors
  Embedded in wearable health devices to log vital signs and firmware updates, with non-volatile storage ensuring data integrity during power outages.
• Surgical Instruments
  Holds sterilization cycle parameters and safety-critical software in endoscopic tools, relying on hardware write protection for regulatory compliance.

5. Networking & Communication

• Industrial Routers/Switches
  Stores firmware for network protocols (TCP/IP, OSPF) and boot code, ensuring reliable operation in outdoor/industrial settings.
• Edge Computing Gateways
  Used in IIoT gateways to cache sensor data and edge analytics models, with fast read speeds enabling real-time decision-making.
• Satellite Communication Modules
  Stores telemetry processing logic and encryption keys, leveraging its wide temperature range for aerospace/defense applications

6. Security & Authentication

• Secure Boot Systems
  The protected boot block safeguards cryptographic keys and root-of-trust firmware in access control systems, preventing unauthorized firmware tampering.
• Smart Card Readers
  Stores encryption algorithms and authentication protocols, ensuring secure transactions in POS terminals and government ID systems.

7. Legacy & Specialized Systems

• Legacy Embedded Systems
  Replaces outdated EEPROMs in devices like printers and cash registers, offering faster read speeds and higher endurance (100,000 erase cycles vs. EEPROM's ~1M cycles).
• Aerospace Avionics
  Used in flight control systems for storing navigation firmware and flight data recorders, meeting MIL-STD-810H environmental standards.

8. Replacement for EEPROM in Code-Centric Applications

• IoT Edge Nodes
  Replaces EEPROM in sensor hubs to store firmware and configuration data, with parallel interface compatibility simplifying migration from older serial EEPROMs.
• Industrial Timers/Relays
  Stores timing sequences and relay logic, eliminating EEPROM's write latency (NOR Flash writes are ~10x faster).

Key Technical Specifications

• Technology: 0.18 µm CMOS floating-gate process.
• Erase Blocks:
  • 16KB boot block (protected)
  • Two 8KB parameter blocks
  • Four main blocks (96KB each).
• Programming: Two-cycle write/erase sequence with automatic algorithm
• Voltage: 5V ±10% (VCC and VPP).
• Package: 44-pin SOP (SG-8BET:F).

Typical Use Case Example

• Calibration data and sensor configuration.
• Real-time data logging algorithms.
• Firmware updates for remote maintenance.
  Its fast read access (80 ns) ensures seamless integration with the sensor's microcontroller, while the protected boot block prevents accidental firmware corruption.
