Functions1

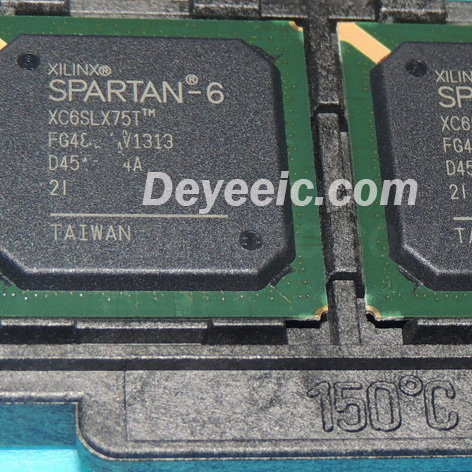

• High - Density Logic Processing: The XC6SLX75T - 2FG484I belongs to the Spartan - 6 FPGA family.
• It has 74,637 logic elements, providing a large - scale logic processing capacity.
•  It can meet the complex logic requirements of various digital systems, such as implementing multiple - level logic operations, state machines,
• and complex digital signal processing algorithms.
• Rich I / O Resources: With 268 I / O ports, it offers a large number of external connection channels.
• These I / O ports support a variety of protocols and standards, enabling easy connection to different peripheral devices, such as sensors,
• actuators, communication interfaces, and display devices, to achieve efficient data exchange between the FPGA and the outside world.
• Clock Management: It is equipped with a dedicated clock management module, including a Digital Clock Manager (DCM) and a Phase - Locked Loop (PLL).
• These modules can generate, divide, multiply, and delay clocks,
• providing accurate and stable clock signals for the internal logic of the FPGA and external devices.
• This is crucial for ensuring the synchronous operation of high - speed digital systems and meeting the requirements of different clock domains.
• Memory Resources: The chip has 3,096 kbit of embedded Block RAM - EB and 692 kbit of distributed RAM.
• These memory resources can be used to store data, program code, and intermediate results.
• They are suitable for applications that require data caching and buffering, such as image and video processing,
• where a large amount of data needs to be stored and read quickly.
• High - Speed Data Processing: It can operate at a maximum frequency of 375 MHz,
• enabling high - speed data processing. It can handle high - speed data streams in applications such as communication and video processing,
• meeting the requirements for real - time processing of high - speed data.

Applications5

• Communication Field: In the communication field, it can be used to implement various communication protocols and standards,
• such as Ethernet, USB, and PCI Express. By configuring the appropriate logic circuits and communication interfaces,
• high - performance communication devices such as routers, switches, and modems can be constructed.
• It can also be used for signal processing and protocol conversion in wireless communication base stations to improve the efficiency and reliability of data transmission.
• Industrial Automation: In industrial automation systems, it is used for the design and implementation of control systems.
•  It can be connected to sensors and actuators to process input and output data in real time.
• By programming and configuring, complex control logic can be established to achieve the control and monitoring of automatic production lines,
• robots, and industrial processes. For example, it can be used in the motion control of industrial robots to achieve precise position and speed control.
• Embedded Systems:
• It is widely used in embedded systems and can be used as an external module around the core processor to cooperate with microcontrollers or microprocessors.
• Through the programmability of FPGA, system functions can be flexibly expanded and customized to meet the needs of different applications. For example,
• in embedded video surveillance systems, it can be used for video encoding and decoding, as well as image analysis and processing.
• Video and Image Processing: It has strong processing capabilities in the field of video and image processing.
• It can achieve high - speed data transmission and complex algorithm calculations, and is used in applications such as video encoding, image recognition,
• and digital signal processing. For example, in digital cameras and video surveillance equipment, it can be used for image noise reduction, sharpening, and object detection.

Similar Models

• XC6SLX45T - 2FG484I: It is also a member of the Spartan - 6 family. Compared with XC6SLX75T - 2FG484I,
• it has a smaller number of logic elements and memory resources, which may be suitable for some applications with lower logic scale and memory requirements,
• but still require the basic functions of FPGA, such as some simple industrial control systems and low - end communication devices.
• XC7A75T - 2FGG484I: It belongs to the Artix - 7 series of Xilinx. I
• t has similarities to the XC6SLX75T - 2FG484I in some aspects, such as a similar pin - out configuration and working voltage range.
• However, the Artix - 7 series is based on a more advanced process technology,
• which may have better performance in power consumption and high - speed signal processing.
• It is widely used in industrial automation, communication, data centers, medical and other fields,
• and is suitable for applications that require higher performance and lower power consumption.
• EP4CE115F29C7: It is an FPGA of the Cyclone IV series of Altera (now Intel).
• Although it comes from a different manufacturer, it has similar functions to the XC6SLX75T - 2FG484I and can be used for digital logic design,
• system control, and other applications. The Cyclone IV series has advantages in cost - effectiveness and low - power design.
• It is suitable for applications that have requirements for cost and power consumption, such as some consumer electronics and low - end industrial control products.
