Name: AX88180LF
Brand: ASIX
SKU: AX88180LF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Home > Products > Integrated Circuits (ICs) > Interface - Controllers

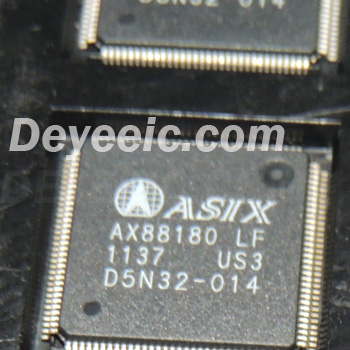

ASIX AX88180LF

Part No.:: AX88180LF

Manufacturer:: ASIX

Category:: Interface - Controllers

Package:: 128-pin LQFP

Datasheet:: AX88180LF.pdf

Description:: High-performance non-PCI local bus

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

High-Performance Non-PCI32-bit 10/100/1000M Gigabit Ethernet Controller AX88180LF

Features

● High-performance non-PCI local bus 16/32-bit SRAM-like host interface (US PatentApproval) Support big/little endian data bus type

Large embedded SRAM for packet buffers¾ 32K bytes for receive buffer¾ 8K bytes for transmit buffer Support IP/TCP/UDP

checksum offloads Support interrupt with high or low active triggermode

● Highly-integrated Gigabit Ethernet controller Compatible with IEEE802.3, 802.3u, and 802.3abstandards Support 10/100/1000Mbps

data rate Support full duplex operation with 1000Mbps datarate Support full and half duplex operations with10/100Mbps

date rate Support 10/100/1000Mbps N-way Auto-negotiationoperation Support IEEE 802.3x flow control for full-duplexoperation

Support 10/100/1000Mbps data rate with RGMIIor MII in 10/100Mbps data rate. Support back-pressure flow control for half-duplexoperation

Support packet length set by software Support max 4K bytes JUMBO packet

● Support Wake-on-LAN function by following events Detection of network link-up state Receipt of a Magic Packet

● Support Magic Packet detection for remote wake-upafter power–on reset

● Support EEPROM interface

● Support PCMCIA in 16-bit mode

● Support synchronous or asynchronous mode to hostMCU

● Integrated voltage regulator from 3.3V to 2.5V

● 2.5V for core and 3.3V I/O with 5V tolerance

● 128-pin LQFP with CMOS process, RoHS package

Product Description

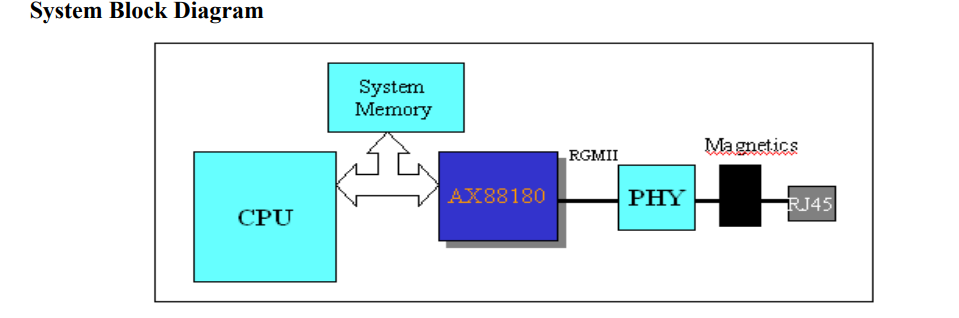

The AX88180 is a high-performance and cost-effective non-PCI Gigabit Ethernet controller for various embeddedsystems including

consumer electronics and home network markets that require a higher bandwidth of networkconnectivity.

The AX88180 supports 16/32-bit SRAM-like host interface and Gigabit Ethernet MAC,

which isIEEE802.3 10Base-T, IEEE802.3u 100Base-T, and IEEE802.3ab 1000Base-T compatible.

The AX88180 supportsfull-duplex or half-duplex operation at 10/100Mbps speed and supports full-duplex operation at 1000Mbps speed.

TheAX88180 integrates large embedded SRAM for packet buffers to accommodate high bandwidth

applications andsupports IP/TCP/UDP checksum to offload processing loading from microprocessor/microcontroller in an embeddedsystem

The AX88180LF is a highly integrated Ethernet controller chip designed by ASIX Electronics. Below is an overview of its key features and applications in English:

Key Features:

High-Speed Connectivity
- Supports 10/100/1000 Mbps Gigabit Ethernet (GbE) with auto-negotiation.
- Compliant with IEEE 802.3, 802.3u, and 802.3ab standards.
USB Interface
- Integrates a USB 2.0/1.1 PHY (Physical Layer) with support for 480 Mbps high-speed USB.
- Enables Ethernet-over-USB functionality for embedded systems.
Low Power Consumption
- Optimized for power efficiency, suitable for portable and embedded devices.
- Supports advanced power management features.
Integrated MAC & PHY
- Combines Media Access Control (MAC) and Physical Layer Transceiver (PHY) in a single chip, reducing external components.
Advanced Networking Features
- Supports VLAN tagging, QoS (Quality of Service), and Wake-on-LAN (WoL).
- Includes TCP/IP offload engine (TOE) for improved performance.
Compact & Easy Integration
- Available in a small-footprint LQFP package.
- Designed for embedded Linux, Windows, and real-time OS support.

Typical Applications:

USB-to-Gigabit Ethernet Adapters (for laptops, PCs, and industrial systems).
Embedded Systems (IoT gateways, industrial automation).
Network-Attached Storage (NAS) Devices.
Gaming Consoles & Set-Top Boxes.
Medical & Automotive Networking Solutions.

Advantages:

✔ Single-chip solution reduces BOM (Bill of Materials) cost.
✔ Plug-and-play compatibility with major operating systems.
✔ Robust ESD protection for enhanced reliability.

Would you like additional details on pin configuration or driver support?

Package/Case:: 128-pin LQFP

Packaging:: 128-pin LQFP

Series:: AX88180

ProductStatus:: AX88180LF

Protocol:: AX88180LF

Function:: AX88180LF

Interface:: AX88180LF

Standards:: AX88180LF

Voltage-Supply:: AX88180LF

Current-Supply:: AX88180LF

OperatingTemperature:: AX88180LF

Category:: Interface - Controllers

Datasheet:: AX88180LF.pdf
