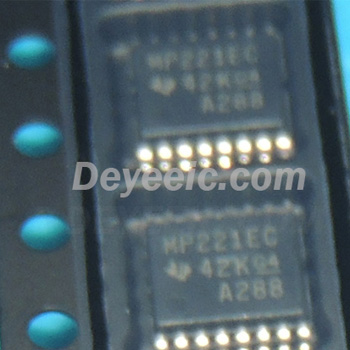

MAX3221ECPWR

Functions

1. Full-Featured RS-232 Communication
   • Compliant with the RS-232 standard, enabling bidirectional data transmission between devices over long cables (up to 15 meters) in noisy environments.
   • Supports 2 drivers and 2 receivers (dual-channel), allowing simultaneous transmission and reception of data (e.g., TXD/RXD pairs for serial ports).
2. Low-Power Operation
   • Operates from a 3.0V to 5.5V supply voltage, making it compatible with both 3.3V and 5V systems (e.g., microcontrollers, FPGAs).
   • Low standby current: <1μA in shutdown mode, ideal for battery-powered devices (e.g., portable measurement tools, IoT sensors) requiring extended runtime.
   • Active mode current: 0.3mA (typical) at 3.3V, significantly lower than traditional RS-232 transceivers.
3. Integrated Charge Pump
   • Eliminates the need for external ±12V supplies by generating RS-232-compliant voltages (±7V to ±12V) internally via a built-in charge pump.
   • Requires only 4 small external capacitors (1μF each) for charge pump operation, simplifying the circuit design and reducing board space.
4. High Data Rate Support
   • Achieves data transfer rates up to 1Mbps, suitable for high-speed serial applications like real-time data logging, industrial automation,
   • and legacy communication protocols (e.g., UART, RS-232).
5. Robust ESD and Fault Protection
   • ESD protection: ±15kV HBM (Human Body Model) on all RS-232 pins, safeguarding against electrostatic discharge during handling or operation.
   • Overvoltage protection: Withstands ±25V on RS-232 ports, preventing damage from accidental wiring errors or voltage transients in industrial environments.
   • Thermal shutdown: Automatically disables drivers during overloads to prevent overheating.
6. Wide Temperature Range
   • Operates from -40°C to +85°C (Industrial Grade), ensuring reliable performance in harsh environments (e.g., factory floors, automotive cabins).
7. Shutdown Mode
   • A dedicated SHDN pin (active-low) puts the device into low-power standby,
   • reducing current draw and enabling power-saving sleep modes in battery-powered systems.

Applications

1. Industrial Automation and Control
   • Connects PLCs (Programmable Logic Controllers), HMIs (Human-Machine Interfaces), and sensors to central control systems via RS-232.
   • Used in factory equipment (e.g., conveyors, robotics) for real-time monitoring and command transmission.
2. Embedded Systems and IoT
   • Bridges microcontrollers (e.g., Arduino, Raspberry Pi)
   • with legacy RS-232 devices (e.g., modems, barcode scanners) in IoT gateways or edge computing nodes.
   • Enables serial communication in low-power IoT sensors (e.g., environmental monitors) that require long battery life.
3. Medical Devices
   • Integrates with blood pressure monitors, ventilators, and diagnostic equipment for serial data exchange with PCs or printers.
   • Low power consumption suits portable medical tools (e.g., handheld ultrasound devices).
4. Automotive and Transportation
   • Facilitates in-vehicle diagnostics (e.g., OBD-II interfaces) and communication between ECUs (Electronic Control Units) and dashboards.
   • Robust ESD and voltage protection meet automotive EMI/EMC standards.
5. Test and Measurement Equipment
   • Connects oscilloscopes, multimeters, and data loggers to computers for remote control and data transfer.
   • High data rate supports real-time logging of sensor data in lab environments.
6. Consumer Electronics
   • Retrofits legacy RS-232 ports into modern devices (e.g., set-top boxes, printers) for compatibility with older peripherals.

Key Specifications (Summary)

The MAX3221ECPWR is valued for its low power consumption, compact design, and robust performance,

making it a versatile choice for bridging modern low-voltage systems with legacy RS-232 infrastructure.

 Its combination of high data rates, ESD protection, and wide supply voltage range ensures reliable communication in diverse applications,

from industrial control to portable electronics.
