Name: AD9650BCPZ-105
Brand: Analog Devices Inc.
SKU: AD9650BCPZ-105
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Home > Products > Integrated Circuits (ICs) > Data Acquisition - Analog to Digital Converters (ADC)

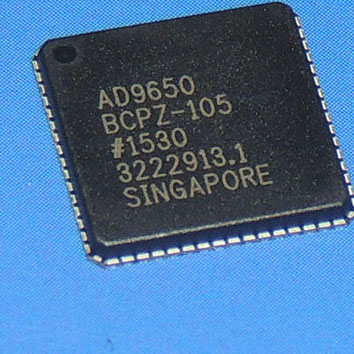

Analog Devices Inc. AD9650BCPZ-105

Part No.:: AD9650BCPZ-105

Manufacturer:: Analog Devices Inc.

Category:: Data Acquisition - Analog to Digital Converters (ADC)

Package:: 64-VFQFN Exposed Pad, CSP

Datasheet:: AD9650BCPZ-105.pdf

Description:: IC ADC 16BIT PIPELINED 64LFCSP AD9650BCPZ-105

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

IC ADC 16BIT PIPELINED 64LFCSP AD9650BCPZ-105

16-Bit, 25 MSPS/65 MSPS/80 MSPS/105 MSPS

1.8 V Dual Analog-to-Digital Converter (ADC)

FEATURES

1.8 V analog supply operation
1.8 V CMOS or LVDS output supply
SNR
82 dBFS at 30 MHz input and 105 MSPS data rate
83 dBFS at 9.7 MHz input and 25 MSPS data rate
SFDR
90 dBc at 30 MHz input and 105 MSPS data rate
95 dBc at 9.7 MHz input and 25 MSPS data rate
Low power
328 mW per channel at 105 MSPS
119 mW per channel at 25 MSPS
Integer 1-to-8 input clock divider
See data sheet for additional features
Additional Details

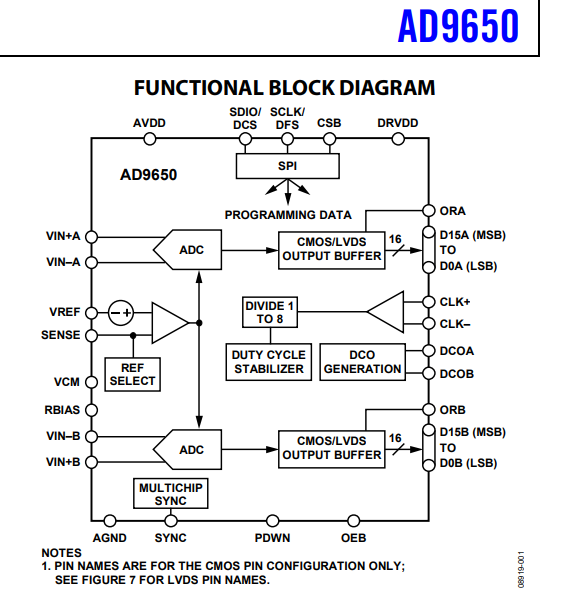

The AD9650 is a dual, 16-bit, 25 MSPS/65 MSPS/80 MSPS/ 105 MSPS analog-to-digital converter (ADC) designed for digitizing high frequency, wide dynamic range signals with input frequencies of up to 300 MHz.

The dual ADC core features a multistage, differential pipelined architecture with integrated output error correction logic.

Each ADC features wide bandwidth, differential sample-and-hold analog input amplifiers, and shared integrated voltage reference, which eases design considerations.

A duty cycle stabilizer is provided to compensate for variations in the ADC clock duty cycle, allowing the converters to maintain excellent performance.

The ADC output data can be routed directly to the two external 16-bit output ports or multiplexed on a single 16-bit bus. These outputs can be set to either 1.8 V CMOS or LVDS.

Flexible power-down options allow significant power savings, when desired.

Programming for setup and control is accomplished using a 3-wire SPI-compatible serial interface.

The AD9650 is available in a 64-lead LFCSP and is specified over the industrial temperature range of −40°C to +85°C.

PRODUCT HIGHLIGHTS

On-chip dither option for improved SFDR performance with low power analog input.
Proprietary differential input that maintains excellent SNR performance for input frequencies up to 300 MHz.
Operation from a single 1.8 V supply and a separate digital output driver supply accommodating 1.8 V CMOS or LVDS outputs.
Standard serial port interface (SPI) that supports various product features and functions, such as data formatting (offset binary, twos complement, or gray coding), enabling the clock DCS, power-down, and test modes.
Pin compatible with the AD9268 and other dual families, AD9269, AD9251, AD9231, and AD9204. This allows a simple migration across resolutions and bandwidth.

APPLICATIONS
Industrial instrumentation
X-Ray, MRI, and ultrasound equipment
High speed pulse acquisition
Chemical and spectrum analysis
Direct conversion receivers
Multimode digital receivers
Smart antenna systems
General-purpose software radios
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability.

We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.

View our Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

AD9650BCPZ-105 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650BCPZ-25 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650BCPZ-65 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650BCPZ-80 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650BCPZRL7-105 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650BCPZRL7-25 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650BCPZRL7-65 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650BCPZRL7-80 64-Lead LFCSP (9mm x 9mm w/ EP)
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650USVZ-105EP TQFP 1.0 MM W/ THERMAL PAD
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys
AD9650USVZR7-105EP TQFP 1.0 MM W/ THERMAL PAD
Material Declaration
Reliablity Data
Ultra Librarian
SamacSys

Packaging:: Bulk,Tray

Series:: -

Product Status:: Active

Number of Bits:: 16

Sampling Rate(PerSecond):: 105M

Number of Inputs:: 2

Input Type:: Differential

Data Interface:: LVDS - Parallel, Parallel

Configuration:: S/H-ADC

Ratio-S/H:ADC:: 1:1

Number of A/D Converters:: 2

Architecture:: Pipelined

Reference Type:: External, Internal

Voltage-Supply Analog:: 1.7V ~ 1.9V

Voltage-Supply Digital:: 1.7V ~ 1.9V

Features:: Simultaneous Sampling

Operating Temperature:: -40°C ~ 85°C

Category:: Data Acquisition - Analog to Digital Converters (ADC)

Datasheet:: AD9650BCPZ-105.pdf
