Deyee Tech Limited - Global Electronic Component Distributor | IC, Aerospace, Automotive Electronics

Name: AD9910BSVZ
Brand: Analog Devices Inc.
SKU: AD9910BSVZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Home > Products > Integrated Circuits (ICs) > Interface - Direct Digital Synthesis (DDS)

Analog Devices Inc. AD9910BSVZ

Part No.:: AD9910BSVZ

Manufacturer:: Analog Devices Inc.

Category:: Interface - Direct Digital Synthesis (DDS)

Package:: 100-TQFP Exposed Pad

Datasheet:: AD9910BSVZ.pdf

Description:: IC DDS 1GHZ 14BIT 100TQFP

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

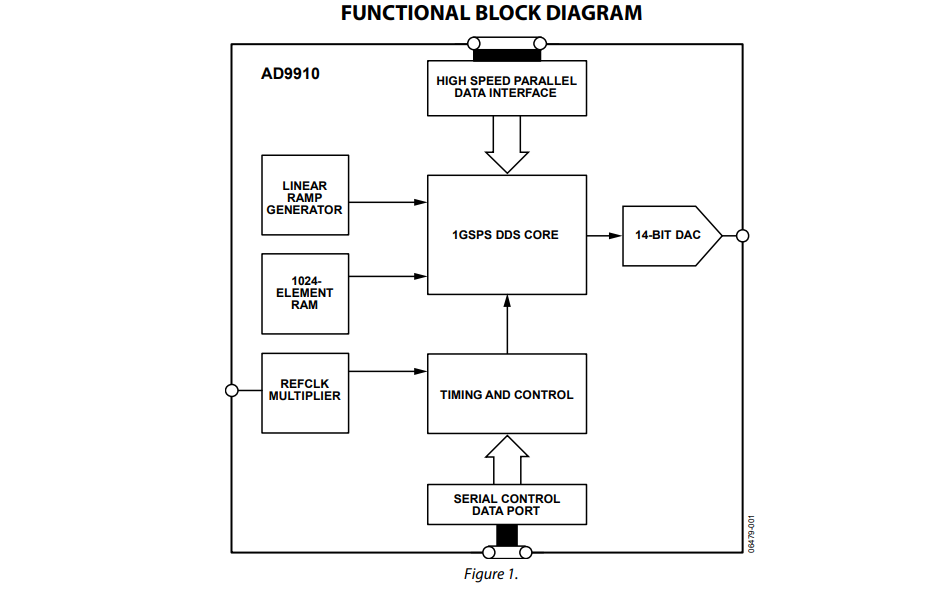

1 GSPS, 14-Bit, 3.3 V CMOSDirect Digital Synthesizer AD9910BSVZ

This is a very advantageous digital synthesizer

FEATURES

1 GSPS internal clock speed (up to 400 MHz analog output)
Integrated 1 GSPS, 14-bit DAC
0.23 Hz or better frequency resolution
Phase noise ≤ −125 dBc/Hz at 1 kHz offset (400 MHz carrier)
Excellent dynamic performance with >80 dB narrow-band SFDR
Serial input/output (I/O) control
Automatic linear or arbitrary frequency, phase, and amplitude sweep capability
8 frequency and phase offset profiles
Sin(x)/(x) correction (inverse sinc filter)
1.8 V and 3.3 V power supplies
Software and hardware controlled power-down
100-lead TQFP_EP package
Integrated 1024 word × 32-bit RAM
PLL REFCLK multiplier
Parallel datapath interface
Internal oscillator can be driven by a single crystal
Phase modulation capability
Amplitude modulation capability
Multichip synchronization
The AD9910 is a direct digital synthesizer (DDS) featuring an integrated 14-bit DAC and supporting sample rates up to 1 GSPS.

The AD9910 employs an advanced, proprietary DDS technology that provides a significant reduction in power consumption without sacrificing performance.

The DDS/DAC combination forms a digitally programmable, high frequency, analog output synthesizer capable of generating a frequency agile sinusoidal waveform at frequencies up to 400 MHz.

The user has access to the three signal control parameters that control the DDS: frequency, phase, and amplitude.

The DDS provides fast frequency hopping and frequency tuning resolution with its 32-bit accumulator. With a 1 GSPS sample rate, the tuning resolution is ~0.23 Hz.

The DDS also enables fast phase and amplitude switching capability.

The AD9910 is controlled by programming its internal control registers via a serial I/O port.

The AD9910 includes an integrated static RAM to support various combinations of frequency, phase, and/or amplitude modulation.

The AD9910 also supports a user defined, digitally controlled, digital ramp mode of operation. In this mode, the frequency, phase, or amplitude can be varied linearly over time.

For more advanced modulation functions, a high speed parallel data input port is included to enable direct frequency, phase, amplitude, or polar modulation.

The AD9910 is specified to operate over the extended industrial temperature range.

Applications

Agile local oscillator (LO) frequency synthesis
Programmable clock generators
FM chirp source for radar and scanning systems
Test and measurement equipment
Acousto-optic device drivers
Polar modulators
Fast frequency hopping

Package/Case:: 100-TQFP Exposed Pad

Packaging:: Tray

Series:: -

ProductStatus:: Active

Resolution(Bits):: 14 b

Masterfclk:: 1 GHz

TuningWordWidth(Bits):: 32 b

Voltage-Supply:: 1.8V, 3.3V

OperatingTemperature:: -40°C ~ 85°C

MountingType:: Surface Mount

Category:: Interface - Direct Digital Synthesis (DDS)

Datasheet:: AD9910BSVZ.pdf
