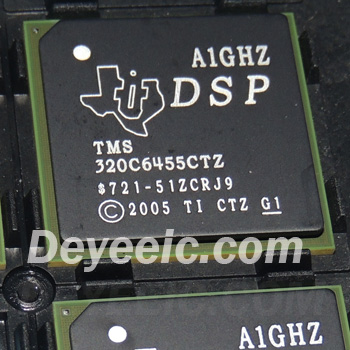

TMS320C6455BCTZA Fixed-Point Digital Signal Processor

1. Processor Core: d

   • Based on TMS320C64x+™ DSP core, offering up to 9600 MIPS (million instructions per second) at 1.2 GHz clock speed.

   • VelociTI.2 VLIW Architecture (Very Long Instruction Word) for high-speed parallel processing.

2. Memory:

   • 1 MB L2 SRAM (configurable as cache or mapped memory).

   • 32-bit DDR2 SDRAM interface (up to 533 MHz) for external memory expansion.

3. High-Speed Interfaces:

   • Serial RapidIO® (SRIO) – Supports 1x/4x links at up to 3.125 Gbaud for high-speed inter-processor communication.

   • Gigabit Ethernet (EMAC) – Integrated 10/100/1000 Mbps Ethernet MAC for network connectivity.

   • PCI (Peripheral Component Interconnect) – 32-bit, 66 MHz interface for host communication.

   • HPI (Host Port Interface) – 32-bit interface for host processor access.

4. On-Chip Peripherals:

   • McASP (Multichannel Audio Serial Port) – Supports audio and telecom interfaces.

   • McBSP (Multichannel Buffered Serial Port) – For serial data transfer (e.g., T1/E1, SPI).

   • Timers, GPIOs, and UART – For system control and debugging.

5. Process Technology:

   • Manufactured in 65nm CMOS technology, balancing performance and power efficiency.

6. Power Efficiency:

   • Dynamic power management for optimized energy consumption.

Typical Applications:

The TMS320C6455BCTZA is widely used in real-time, high-throughput signal processing applications, including:

1. Wireless Infrastructure:

   • Baseband processing in 4G/LTE, 5G, and software-defined radio (SDR) systems.

   • Beamforming and massive MIMO algorithms.

2. Defense & Aerospace:

   • Radar, sonar, and electronic warfare (EW) systems.

   • Secure communications and signal intelligence (SIGINT).

3. Medical Imaging:

   • Ultrasound, MRI, and CT scan image processing.

4. Industrial & Test Equipment:

   • High-speed data acquisition and real-time control systems.

   • Automated test equipment (ATE) and oscilloscopes.

5. Video & Multimedia:

   • Video transcoding, surveillance, and vision-based analytics.

Advantages Over Competing DSPs:

• Superior computational density for complex algorithms (e.g., FFT, FIR, matrix operations).

• Low-latency interconnects (RapidIO, PCI) for multi-DSP systems.

• Scalability in heterogeneous processing architectures.

For detailed specifications, refer to the official Texas Instruments datasheet (SPRS440) or the TMS320C6455 Technical Reference Manual.

Here are the similar/replacement models to TMS320C6455BCTZA, along with their key differences and compatibility:

1. TMS320C6455BCTZ

• Manufacturer: Texas Instruments (TI)

• Key Similarities:

  • Same 697-pin FCBGA package.

  • 32-bit fixed-point DSP with 1 GHz clock speed.

  • Compatible C64x+ DSP core and VelociTI.2 VLIW architecture.

  • Supports Serial RapidIO (SRIO), Gigabit Ethernet (EMAC), PCI, and DDR2 memory interface.

• Differences:

  • Operating Temperature Range:

    • C6455BCTZA: -40°C to 105°C (Extended Industrial)

    • C6455BCTZ: 0°C to 90°C (Commercial/Industrial) .

  • Price & Availability:

    • C6455BCTZ has a shorter lead time (8 weeks vs. 12 weeks for BCTZA) .

2. Other Potential Alternatives (Same Family)

• TMS320C6455BCTZA7 (if available) – May offer minor revisions but similar specs.

• TMS320C6454/C6452 – Lower clock speeds (e.g., 720 MHz, 850 MHz) but same architecture.

Considerations for Replacement:

• Thermal Requirements: If operating in harsh environments, BCTZA (-40°C to 105°C) is preferable.

• Software Compatibility: Most firmware/drivers for BCTZA should work on BCTZ with minimal adjustments.

• Supply Chain: BCTZ may be more readily available in some markets .

For detailed comparisons, refer to TI's datasheets (SPRS440) or distributor listings
