Name: F280025PNS
Brand: Texas Instruments
SKU: F280025PNS
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Home > Products > Integrated Circuits (ICs) > Embedded - Microcontrollers

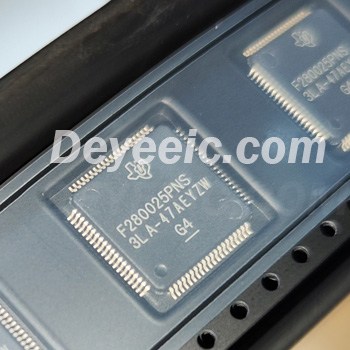

Texas Instruments F280025PNS

Part No.:: F280025PNS

Manufacturer:: Texas Instruments

Category:: Embedded - Microcontrollers

Package:: 80-LQFP

Datasheet:: F280025PNS.pdf

Description:: IC MCU 32BIT 128KB FLASH 80LQFP

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

The TMS320F280025PNSR is a high-performance 32-bit real-time microcontroller from T

exas Instruments' C2000™ series, designed specifically for power electronics and advanced control applications.

This comprehensive guide covers its key features, typical applications, and comparable alternative models.

Key Features of F280025PNSR

Core Processing Capabilities

32-bit C28x DSP core operating at 100MHz with IEEE 754-compliant Floating-Point Unit (FPU)
Trigonometric Math Unit (TMU) for hardware acceleration of nonlinear PID (NLPID) control algorithms
Fast Integer Division (FINTDIV) and CRC Engine (VCRC) for efficient computations
Ten hardware breakpoints with Embedded Real-time Analysis and Diagnostic (ERAD) module

Memory Configuration

128KB (64K×16) Flash memory with ECC protection
24KB (12K×16) RAM with ECC or parity protection
Dual-zone security architecture

Analog System

Dual 3.45MSPS 12-bit ADCs with up to 16 external channels
Four integrated post-processing blocks (PPB) per ADC
Four windowed comparators (CMPSS) with 12-bit reference DACs
Digital glitch filters for noise reduction

Enhanced Control Peripherals

14 ePWM channels (8 with high-resolution capability at 150ps resolution)
Integrated dead-band generation and hardware trip-zone (TZ) protection
Three enhanced capture (eCAP) modules (one supports high-resolution capture)
Two enhanced quadrature encoder pulse (eQEP) modules supporting CW/CCW modes
Configurable Logic Block (CLB) for peripheral enhancement

Communication Interfaces

1 CAN bus port, 2 SPI ports, and 1 SCI (UART-compatible) interface
Two LIN (UART-compatible) interfaces
Fast Serial Interface (FSI) with 1 transmitter and 1 receiver (up to 200Mbps)
1 PMBus interface and 2 I2C interfaces

Power Management

Single 3.3V supply (operating range: 2.81V-3.63V)
Internal voltage regulator (VREG) and brown-out reset (BOR) circuit
Multiple low-power modes (LPM) including standby, hibernation, and deep sleep

Package Options

80-pin LQFP (PN suffix)
Temperature range: -40°C to 125°C (AEC Q100 qualified for automotive applications)

Typical Applications

The F280025PNSR is widely used in power electronics and real-time control applications:

Industrial Motor Control
- AC servo drives
- BLDC motor control
- Stepper motor control
- Industrial robotics
Power Electronics & Energy Conversion
- Solar inverters
- UPS systems
- AC/DC and DC/DC converters
- Wireless charging systems
Automotive Electronics
- EV motor controllers
- On-board chargers
- Battery management systems (BMS)
- Electric power steering
Digital Power Management
- Server power supplies
- Telecom power systems
- High-density power modules
- LLC resonant converters
Smart Home & IoT
- Smart appliance motor control
- Energy monitoring systems
- Home automation controllers

Alternative Models and Comparable Devices

Texas Instruments offers several similar microcontrollers in the C2000 family with varying performance levels and feature sets:

Same F28002x Family Variants

F28002xPM: 64-pin LQFP version with reduced GPIO
F28002xPT: 48-pin LQFP version with streamlined peripherals

Higher-Performance Alternatives

TMS320F28377SPTPT: Dual-core 200MHz, 1.28MB Flash, 256-pin BGA
TMS320F28335PTPQ: 150MHz single-core, 512KB Flash, 176-pin LQFP

Cost-Optimized Alternatives

TMS320F28034PNTR: 60MHz, 128KB Flash, 80-pin LQFP
TMS320F28004x Series: Enhanced peripherals with CLA co-processor

Compact Package Alternatives

TMS320F28002xPT: 48-pin LQFP for space-constrained designs
TMS320F28004xPSM: 64-pin LQFP balancing performance and size

Development Support

TI provides comprehensive development tools for the F280025PNSR:

C2000Ware: Complete software development kit
Code Composer Studio™ (CCS): Integrated development environment
controlSUITE™: Specialized software for digital power and motor control
TMDSCNCD280025C evaluation board: Complete development platform

Package/Case:: 80-LQFP

Packaging:: Tray

Series:: F28002x C2000™

ProductStatus:: RoHS

CoreProcessor:: 100MHz

CoreSize:: 12K x 16

Speed:: 32-Bit

Connectivity:: -

Peripherals:: Active

NumberofI/O:: Brown-out Detect/Reset, POR, PWM, WDT

ProgramMemorySize:: CANbus, I²C, LINbus, SCI, SPI, UART/USART

ProgramMemoryType:: Surface Mount

EEPROMSize:: 39

RAMSize:: C28x

Voltage-Supply(Vcc/Vdd):: A/D 16x12b; D/A 2x12b

DataConverters:: Internal

OscillatorType:: 128KB (64K x 16)

OperatingTemperature:: FLASH

MountingType:: -40°C ~ 125°C (TJ)

Category:: Embedded - Microcontrollers

Datasheet:: F280025PNS.pdf

1. How to order F280025PNS on Deyee Tech Limited?

Currently, Deyee Tech Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Deyee Tech Limited guarantee that F280025PNS is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the F280025PNS. All suppliers must pass our qualification reviews before they can publish their products including F280025PNS on Deyee Tech Limited; we pay more attention to the channels and quality of F280025PNS products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the F280025PNS price and inventory displayed accurate?

The price and inventory of F280025PNS fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of F280025PNS?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the F280025PNS we delivered, we will accept the replacement or return of the F280025PNS only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of F280025PNS.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as F280025PNS pin diagram, F280025PNS datasheet?

If you need any after-sales service, please do not hesitate to contact us.

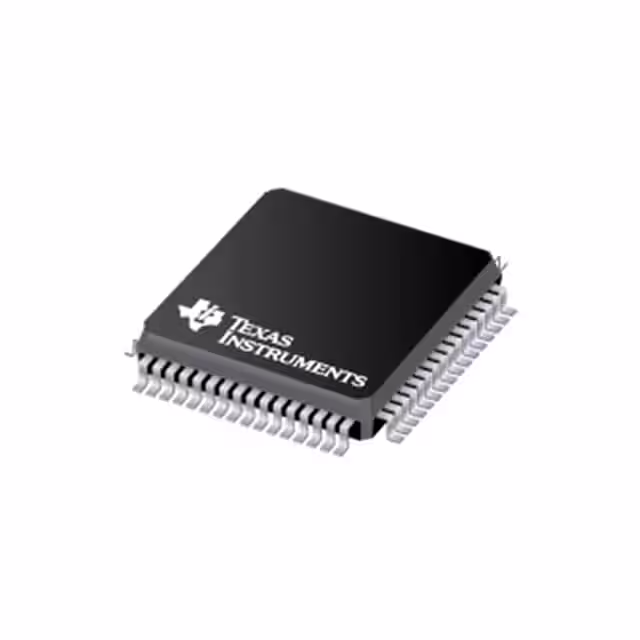

Part Number	F280023PTSR	F280025PTSR	F280023PMSR	F280021PTSR	F280025CPMSR
