Deyee Tech Limited - Global Electronic Component Distributor | IC, Aerospace, Automotive Electronics

Name: LTC2865IMSE#PBF
Brand: Analog Devices Inc.
SKU: LTC2865IMSE#PBF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Home > Products > Integrated Circuits (ICs) > Interface - Drivers, Receivers, Transceivers

Analog Devices Inc. LTC2865IMSE#PBF

Part No.:: LTC2865IMSE#PBF

Manufacturer:: Analog Devices Inc.

Category:: Interface - Drivers, Receivers, Transceivers

Package:: 12-TSSOP (0.118, 3.00mm Width) Exposed Pad

Datasheet:: LTC2865IMSE#PBF.pdf

Description:: IC TRANSCEIVER FULL 1/1 12MSOP

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

LTC2865IMSE#PBF RS-422/RS-485 Interface IC 60V Fault Protected 3V to 5.5V

Functional Overview

The LTC2865IMSE#PBF is a robust RS-485/RS-422 transceiver IC manufactured by

Analog Devices (formerly Linear Technology). This device offers several key features:

Fault Protection: Provides ±60V overvoltage fault protection on bus pins,
making it highly resilient in harsh electrical environments
Voltage Range: Operates from a wide 3V to 5.5V supply voltage
Data Rates: Selectable high-speed (20Mbps) or low-noise (250kbps) operation modes
Full Duplex: Supports full-duplex communication with separate receiver and transmitter paths
Temperature Range: Industrial-grade operation from -40°C to 85°C
Package: Comes in a compact 12-pin MSOP-EP package with exposed pad for enhanced thermal performance

The device includes integrated failsafe features that ensure receiver output defaults to a high state when inputs are open,

shorted, or terminated but not driven

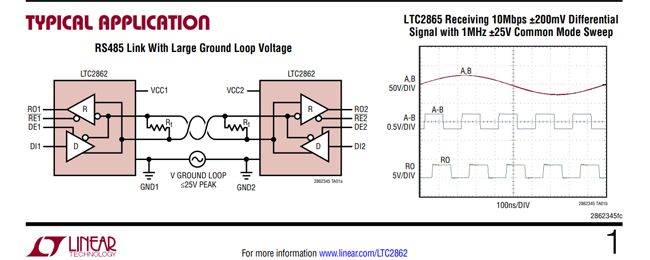

Typical Applications

The LTC2865IMSE#PBF is designed for demanding industrial and automotive communication systems:

Industrial Automation: Used in factory automation systems for robust communication between PLCs, sensors, and actuators in noisy environments
Building Automation: Implements reliable RS-485 networks for HVAC control, lighting systems, and security installations
Automotive Systems: Suitable for in-vehicle networks where ±60V fault protection is required against load dump and other transients
Medical Equipment: Provides isolated communication channels in medical devices where reliability is critical
Telecom Infrastructure: Used in base stations and network equipment for robust differential signaling

Similar/Alternative Models

Several alternative devices offer comparable functionality to the LTC2865IMSE#PBF:

LTC2865IMSE#TRPBF: Tape and reel version of the same device, identical in specifications but with different packaging
LTC2865HDE#PBF: Higher temperature version (-40°C to 125°C) in a DFN package
LTC2862/LTC2863/LTC2864: Family variants with different combinations of failsafe biasing and reduced slew rate options
MAX485: Popular RS-485 transceiver from Maxim Integrated with similar basic functionality but lower fault protection
SN65HVD72: Texas Instruments alternative with comparable speed but different fault protection characteristics
LTC2862CS8-1#PBF LTC2862CS8-1#TRPBF 28621 8-Lead (150mil) Plastic SO 0°C to 70°CLTC2862IS8-1#PBF
LTC2862IS8-1#TRPBF 28621 8-Lead (150mil) Plastic SO –40°C to 85°CLTC2862HS8-1#PBF
LTC2862HS8-1#TRPBF 28621 8-Lead (150mil) Plastic SO –40°C to 125°CLTC2862CS8-2#PBF
LTC2862CS8-2#TRPBF 28622 8-Lead (150mil) Plastic SO 0°C to 70°CLTC2862IS8-2#PBF
LTC2862IS8-2#TRPBF 28622 8-Lead (150mil) Plastic SO –40°C to 85°CLTC2862HS8-2#PBF
LTC2862HS8-2#TRPBF 28622 8-Lead (150mil) Plastic SO –40°C to 125°CLTC2862CDD-1#PBF
LTC2862CDD-1#TRPBF LFXK 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°CLTC2862IDD-1#PBF
LTC2862IDD-1#TRPBF LFXK 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C
LTC2862HDD-1#PBF LTC2862HDD-1#TRPBF LFXK 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C
LTC2862CDD-2#PBF LTC2862CDD-2#TRPBF LFXM 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C
LTC2862IDD-2#PBF LTC2862IDD-2#TRPBF LFXM 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C
LTC2862HDD-2#PBF LTC2862HDD-2#TRPBF LFXM 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C
LTC2863CS8-1#PBF LTC2863CS8-1#TRPBF 28631 8-Lead (150mil) Plastic SO 0°C to 70°CLTC2863IS8-1#PBF
LTC2863IS8-1#TRPBF 28631 8-Lead (150mil) Plastic SO –40°C to 85°CLTC2863HS8-1#PBF
LTC2863HS8-1#TRPBF 28631 8-Lead (150mil) Plastic SO –40°C to 125°CLTC2863CS8-2#PBF
LTC2863CS8-2#TRPBF 28632 8-Lead (150mil) Plastic SO 0°C to 70°CLTC2863IS8-2#PBF
LTC2863IS8-2#TRPBF 28632 8-Lead (150mil) Plastic SO –40°C to 85°CLTC2863HS8-2#PBF
LTC2863HS8-2#TRPBF 28632 8-Lead (150mil) Plastic SO –40°C to 125°CLTC2863CDD-1#PBF
LTC2863CDD-1#TRPBF LFXN 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°CLTC2863IDD-1#PBF
LTC2863IDD-1#TRPBF LFXN 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°CLTC2863HDD-1#PBF
LTC2863HDD-1#TRPBF LFXN 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°CLTC2863CDD-2#PBF
LTC2863CDD-2#TRPBF LFXP 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°CLTC2863IDD-2#PBF
LTC2863IDD-2#TRPBF LFXP 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°CLTC2863HDD-2#PBF
LTC2863HDD-2#TRPBF LFXP 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C
LTC2864CS-1#PBF LTC2864CS-1#TRPBF LTC2864S-1 14-Lead (150mil) Plastic SO 0°C to 70°C
LTC2864IS-1#PBF LTC2864IS-1#TRPBF LTC2864S-1 14-Lead (150mil) Plastic SO –40°C to 85°C
LTC2864HS-1#PBF LTC2864HS-1#TRPBF LTC2864S-1 14-Lead (150mil) Plastic SO –40°C to 125°C
LTC2864CS-2#PBF LTC2864CS-2#TRPBF LTC2864S-2 14-Lead (150mil) Plastic SO 0°C to 70°C
LTC2864IS-2#PBF LTC2864IS-2#TRPBF LTC2864S-2 14-Lead (150mil) Plastic SO –40°C to 85°C
LTC2864HS-2#PBF LTC2864HS-2#TRPBF LTC2864S-2 14-Lead (150mil) Plastic SO –40°C to 125°C
LTC2864CDD-1#PBF LTC2864CDD-1#TRPBF LFXQ 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C
LTC2864IDD-1#PBF LTC2864IDD-1#TRPBF LFXQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C
LTC2864HDD-1#PBF LTC2864HDD-1#TRPBF LFXQ 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C
LTC2864CDD-2#PBF LTC2864CDD-2#TRPBF LFXR 10-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C
LTC2864IDD-2#PBF LTC2864IDD-2#TRPBF LFXR 10-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C
LTC2864HDD-2#PBF LTC2864HDD-2#TRPBF LFXR 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C
LTC2865CMSE#PBF LTC2865CMSE#TRPBF 2865 12-Lead Plastic MSOP 0°C to 70°CLTC2865IMSE#PBF
LTC2865IMSE#TRPBF 2865 12-Lead Plastic MSOP –40°C to 85°CLTC2865HMSE#PBF
LTC2865HMSE#TRPBF 2865 12-Lead Plastic MSOP –40°C to 125°CLTC2865CDE#PBF
LTC2865CDE#TRPBF 2865 12-Lead (4mm × 3mm) Plastic DFN 0°C to 70°CLTC2865IDE#PBF
LTC2865IDE#TRPBF 2865 12-Lead (4mm × 3mm) Plastic DFN –40°C to 85°CLTC2865HDE#PBF
LTC2865HDE#TRPBF 2865 12-Lead (4mm × 3mm) Plastic DFN –40°C to 125°CLTC2862MPS8-1#PBF
LTC2862MPS8-1#TRPBF 28621 8-Lead (150mm) Plastic SO –55°C to 125°CLTC2862MPS8-2#PBF
LTC2862MPS8-2#TRPBF 28622 8-Lead (150mm) Plastic SO –55°C to 125°CLTC2863MPS8-1#PBF
LTC2863MPS8-1#TRPBF 28631 8-Lead (150mm) Plastic SO –55°C to 125°CLTC2863MPS8-2#PBF
LTC2863MPS8-2#TRPBF 28632 8-Lead (150mm) Plastic SO –55°C to 125°CLTC2864MPS-1#PBF
LTC2864MPS-1#TRPBF LTC2864S-1 14-Lead (150mm) Plastic SO –55°C to 125°C
LTC2864MPS-2#PBF LTC2864MPS-2#TRPBF LTC2864S-2 14-Lead (150mm) Plastic SO –55°C to 125°C

Package/Case:: 12-TSSOP (0.118, 3.00mm Width) Exposed Pad

Packaging:: Tube

Series:: -

ProductStatus:: Active

Type:: Transceiver

Protocol:: RS422, RS485

NumberofDrivers/Receivers:: 1/1

Duplex:: Full

ReceiverHysteresis:: 150 mV

DataRate:: 20Mbps

Voltage-Supply:: 3V ~ 5.5V

OperatingTemperature:: -40°C ~ 85°C

MountingType:: Surface Mount

Category:: Interface - Drivers, Receivers, Transceivers

Datasheet:: LTC2865IMSE#PBF.pdf
