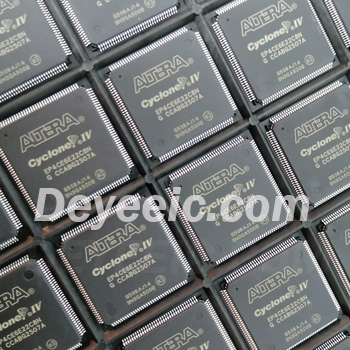

The EP4CE6E22C8N is a member of Altera's (now Intel) Cyclone IV E family of Field Programmable Gate Arrays (FPGAs).

This cost-effective, low-power FPGA offers a balanced combination of logic capacity,

memory resources, and I/O flexibility, making it suitable for various digital system implementations.

Key Features:

• Logic Resources: Contains 6,272 logic elements (LEs) organized in 392 logic array blocks (LABs)

• Memory Capacity: 276,480 bits of embedded RAM (270 Kbit) and 270 Kbit of embedded memory

• Clock Management: Features two general-purpose Phase-Locked Loops (PLLs) for flexible clock generation and management

• I/O Capabilities: Supports up to 179 user I/O pins (91 I/Os standard) with flexible I/O standards support

• Power Characteristics: Operates at 1.15V to 1.25V core voltage with 150mW per channel power consumption

• Package: 144-pin Quad Flat Package (QFP) with exposed pad for enhanced thermal performance

• Speed Grade: Speed grade 8 with maximum operating frequency of 200 MHz (some sources indicate up to 346 MHz)

• Process Technology: 60nm low-power process technology

Performance Characteristics:

• Flexible clock structure supporting multiple protocols in a single transceiver module

• Low-power architecture optimized for cost-sensitive applications

• Matches ASIC functionality while maintaining programmability

Primary Applications

The EP4CE6E22C8N finds application across multiple industries due to its balance of performance, power efficiency, and cost-effectiveness:

1. Communications Systems:

   • Base stations, routers, and switches for protocol processing

   • Wireless communication equipment

   • Network interface controllers and gateways

2. Industrial Automation:

   • Motor control systems

   • Programmable Logic Controllers (PLCs)

   • Industrial networking equipment

   • Robotics and motion control

3. Consumer Electronics:

   • Display controllers

   • Audio/video processing

   • Smart home device controllers

4. Embedded Vision:

   • Machine vision systems

   • Basic image processing pipelines

   • Camera interface controllers

5. Test and Measurement:

   • Data acquisition systems

   • Protocol analyzers

   • Signal generators

6. Automotive Electronics:

   • Infotainment systems

   • Basic driver assistance features

   • Vehicle networking interfaces

The device's combination of logic density, memory resources,

and low power consumption makes it particularly suitable for applications requiring

moderate processing capabilities with strict cost constraints

Alternative/Similar Models

When the EP4CE6E22C8N is unavailable or unsuitable for specific requirements, several alternative FPGAs can be considered:

1. Direct Alternatives within Cyclone IV E Family:

   • EP4CE6E22I7: Functional equivalent with industrial temperature range (-40°C to 100°C) instead of commercial (0°C to 85°C)

   • EP4CE6F17C8N: Similar logic capacity in 256-pin FineLine BGA package for higher I/O count

2. Alternatives from Altera/Intel Cyclone Series:

   • Cyclone III EP3C25Q240C8: Previous generation with comparable logic elements (24,624 LEs) and lower power consumption

   • Cyclone IV GX EP4CGX22: Adds transceiver capability for serial communication applications

   • Cyclone 10 LP 10CL016: Newer generation with improved power efficiency and performance

3. Alternatives from Xilinx:

   • Spartan-6 XC6SLX9: Comparable logic capacity (9,152 LUTs) in 144-pin package

   • Artix-7 XC7A15T: Newer generation with higher performance and lower power

4. Alternatives from Lattice Semiconductor:

   • ECP5 LFE5U-25F: Low-power alternative with similar logic capacity

   • iCE40UP5K: Ultra-low-power option for simple applications

Selection Considerations:

• EP4CE6E22I7: Best alternative when extended temperature range is needed

• EP3C25Q240C8: Suitable when backward compatibility with Cyclone III designs is required

• Newer generation devices: Offer better performance/power ratio but may require design migration

Development Tools and Support

The EP4CE6E22C8N is supported by Intel's Quartus Prime design software (formerly Quartus II), which provides:

• HDL synthesis and simulation capabilities

• IP core integration

• Power analysis tools

• Timing closure features

• Programming file generation

Third-party tools from Mentor Graphics, Synopsys, and other EDA vendors also support this device family for simulation, verification, and synthesis tasks.

Technical Specifications Summary

Conclusion

The EP4CE6E22C8N FPGA provides a cost-optimized solution for digital system designs requiring moderate logic capacity and low power consumption.

Its balanced architecture makes it suitable for a wide range of applications in communications, industrial, consumer,

 and embedded markets. When considering alternatives, designers should evaluate factors such as temperature requirements,

package options, and available I/O along with the specific logic and memory needs of their application.
