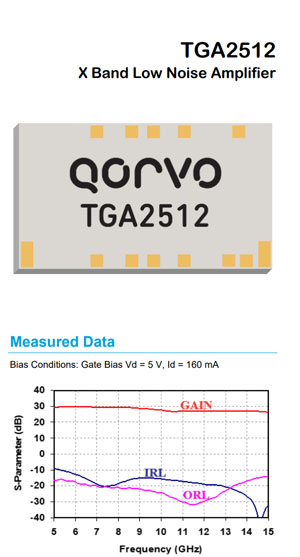

TGA2512X Band Low Noise Amplifier


Product Overview

The Qorvo TGA2512 is a wideband LNA with AGCamplifier for EW, ECM, and RADAR receiver or driveramplifier applications.

Offering high gain 27 dB typicalfrom 5-15 GHz, the TGA2512 provides excellent noiseperformance with typical midband NF 1.4 dB,

whilethe balanced topology offers good return losstypically 15 dB.

The TGA2512 is designed for maximum ease of use.The large input FETs can handle up to 21 dBm inputpower reliably,

 while the build-in gain control provides15 dB of typical gain control range.

The part is alsoassembled in self-biased mode, using a single +5 Vsupply connection from either side of the chip,

or in gatebiased mode, allowing the user to control the current fora particular applications.

In self-biased mode the TGA2512 offers 6 dBm typicalP1 dB, while in gate-biased mode the typical P1 dB isover 13 dBm.

The small size of 2.46 mm2 allows ease ofcompaction into Multi-Chip-Modules (MCMs).

The TGA2512 is 100% DC and RF tested on-wafer toensure performance compliance.

Key Features

• Typical Frequency Range: 5-15 GHz

• 1.4 dB Nominal Noise Figure

• 27 dB Nominal Gain

• Bias: 5 V, 160 mA Gate Bias, 5 V, 90 mA Self Bias

• 0.15 um 3 MI pHEMT Technology

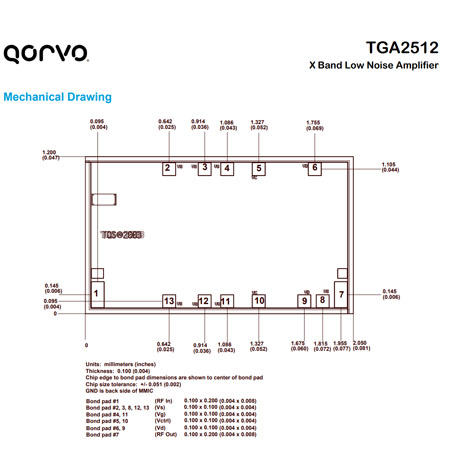

• Chip Dimensions 2.05 x 1.20 x 0.10 mm(0.081 x 0.047 x 0.004 in)

Applications

• X-Band Radar

• EW, ECM

• Point-to-Point RadioOrdering InformationPart No. Package StyleTGA2512 X Band Low Noise Amplifier


Operating Frequency: 5 GHz to 15 GHz
Operating Supply Voltage: 5 V
Operating Supply Current: 160 mA
Gain: 27 dB
NF - Noise Figure: 1.4 dB
Type: Low Noise Amplifiers
Package/Case: Die
Technology: GaAs
P1dB - Compression Point: 13 dBm
OIP3 - Third Order Intercept: 24 dBm
Series: TGA2312
Packaging: Gel Pack
Brand: Qorvo
Input Return Loss: 15 dB
Pd - Power Dissipation: 1.56 W
Product Type: RF Amplifier
