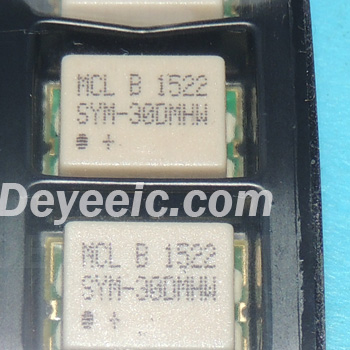

SYM-30DMHW+ Level 13, SMT Double Balanced Mixer, RF/LO Freq 5 - 3000 MHz

Function

The SYM-30DMHW+ is a double-balanced mixer from Mini-Circuits, designed for RF and microwave signal processing.

It efficiently combines or separates frequency components, making it essential in communication and signal conversion systems.

Key Features

• Frequency Range: Broadband operation, typically 5 MHz to 3000 MHz .

• Low Conversion Loss: ~6.5 dB (typical), ensuring minimal signal degradation during mixing .

• High Isolation:

  • LO-to-RF Isolation: ~36 dB (typical)

  • LO-to-IF Isolation: ~45 dB (typical) .

• Robust Construction: Compact, surface-mount design (likely TTT167 case, 6-pin) for integration into PCB-based systems .

• Power Handling: Supports 50 mW RF input power and operates at 40 mA current

• Temperature Range:

  • Operating: -40°C to +85°C

  • Storage: -55°C to +100°C .

Typical Applications

1. Wireless Communication:

   • Used in CDMA, GSM, DCS, and PCN systems for frequency conversion

2. Satellite & Radar Systems:

   • Signal processing in down/up-conversion stages.

3. Test & Measurement Equipment:

   • Spectrum analyzers, signal generators, and RF test setups

4. Broadcast & Military RF Systems:

   • Ensures clean signal mixing in high-performance transceivers.

Compliance & Reliability

• Meets RoHS standards .

• Mini-Circuits' automated production ensures high consistency (6σ quality control)

•


•


  Similar Models to SYM-30DMHW+

  1. SYM-30DHW+

  • Manufacturer: Mini-Circuits

  • Type: Double-balanced mixer

  • Frequency Range: 5 MHz – 3000 MHz

  • Conversion Loss: ≤9.1 dB

  • LO Power Handling: Standard level (exact dBm not specified)

  • Package: LCC6/8, surface-mount

  • Key Features:

    • Non-RoHS compliant (contains lead)

    • High isolation between ports

    • Suitable for broadband RF applications

  • Applications: Wireless comms, test equipment, military RF systems6.

  2. SYM-30DLHW+

  • LO Power Level: +10 dBm (Level 10)

  • Frequency Range: 5 MHz – 3000 MHz

  • Conversion Loss: ≤9.2 dB

  • RoHS Compliance: Yes

  • Package: TTT167 (6-pin SMD)

  • Applications: Similar to SYM-30DMHW+ but optimized for higher LO drive.

  3. SYM-25DMHW+

  • Frequency Range: 40 MHz – 2500 MHz

  • Conversion Loss: 6.6 dB (typical)

  • IP3 (Third-Order Intercept): 26 dBm

  • LO Power Handling: +13 dBm (Level 13)

  • Package: TTT167 (6-pin SMD)

  • Applications: Cellular, PCS, satellite distribution.

  4. SYM-30LH+

  • Frequency Range: 800 MHz – 3000 MHz

  • Conversion Loss: ≤8.8 dB

  • Package: TTT167

  • Applications: Higher-frequency RF systems, reducing low-end noise.

  5. SYM-36H+

  • Frequency Range: 1500 MHz – 3600 MHz

  • Conversion Loss: ≤9 dB

  • Applications: Microwave links, radar, high-frequency test setups.

  ---

  Comparison Summary

  Model	Freq. Range (MHz)	Conv. Loss (dB)	LO Power Level	Key Applications
  SYM-30DMHW+	Likely 5–3000*	≤9.2 (est.)	+10–13 dBm	General RF mixing
  SYM-30DHW+	5–3000	≤9.1	Standard	Broadband systems
  SYM-25DMHW+	40–2500	6.6 (typ.)	+13 dBm	Cellular/PCS
  SYM-30LH+	800–3000	≤8.8	Standard	High-frequency RF

  *Exact specs for SYM-30DMHW+ not found in search, inferred from similar models.

  For detailed datasheets, visit Mini-Circuits' website or distributor links
