Name: RJFTV21G
Brand: Amphenol Socapex
SKU: RJFTV21G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Home > Products > Connectors, Interconnects > Modular Connectors - Adapters

Amphenol Socapex RJFTV21G

Part No.:: RJFTV21G

Manufacturer:: Amphenol Socapex

Category:: Modular Connectors - Adapters

Package:

Datasheet:: RJFTV21G.pdf

Description:: CONN MOD COUPLER 8P8C TO 8P8C RJFTV21G

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

CONN MOD COUPLER 8P8C TO 8P8C RJFTV21G

Applications

• Data Acquisition andTransmission in harshenvironment

• Railways• Radars

• Shelters

• Battelfield CommunicationSystems

• Navy

Description

RJField allows you to use an Ethernet Class D / Cat. 5econnection for 10 BaseT,100 BaseTX or 1000 BaseTnetworks in harsh environments:

• Sealed against fluids and dusts (IP67)

• Shock, Vibration and Traction resistant

• No cabling operation in field and no tools required

• Mechanical Coding / Polarization (4 positions)

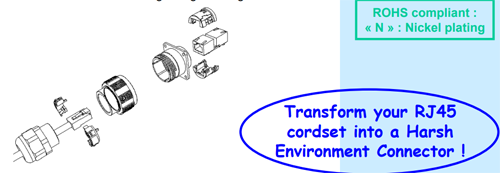

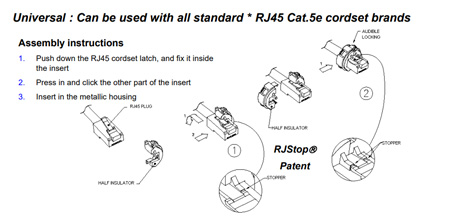

• Improved EMI protectionWith the patented RJStop® system you can use a standardRJ45 cordset in a metallic plug which will protect it fromshocks, dust and fluids.

No hazardous in-field cabling and grounding !

This metallic plug is connected into a receptacle, using a TriStart Thread coupling mechanism (MIL-DTL-38999 series IIItype)

with anti-decoupling device for high vibrations.On the receptacle, one female RJ45 is soldered onto a PCBallowing for the following back terminations :

• another female RJ45• a RJ45 cordset

• a solder terminationThe RJ45 cordset shielding is transmitted to the RJ45receptacle through lateral grounding fingers.For an outstanding EMI protection,

the conductive platedshells (Ni, Cd) with metallized receptacle inserts, transmitthe shielding to the connector shells and finally to the panel

RJFTV21G is a very commonly used high-end RJ45 connector, welcome to consult.

Inventory, Delivery & Lifecycle Information:Amphenol: RJFTV71G RJFTV71N RJFTVC7G RJFTVC7N RJFTVC6G RJFTVC6N RJFTVC2G

RJFTVC2N RJFTV7PE1GRJFTV2PE1G RJFTV2PEM2G00 RJFTV2SA1N RJFTV2PEM2G03100BTX RJFTV2SB1G RJFTV7PE1NRJFTVC6MG

RJFTV7SA2G15100BTX RJFTV22G10100BTX RJFTV22G15100BTX RJFTV22G20100BTXRJFTV22G30100BTX RJFTV22N05100BTX

RJFTV22N10100BTX RJFTV2PEM2N00 RJFTV72G03100BTXRJFTV72G05100BTX RJFTV72G10100BTX RJFTV72N05100BTX

RJFTV72N15100BTX RJFTV7PE2N00RJFTV7PEM2G00 RJFTV21G RJFTV21N RJFTV2PEM2G05100BTX RJFTV22G05100BTX

RJFTV2PE2G00RJFTV2PE2G03100BTX RJFTV2PE2G05100BTX RJFTV2PE2N00 RJFTV2PE2N05100BTXRJFTV2PE2N10100BTX

RJFTV2PEM2G10100BTX RJFTV2PEM2G15100BTX RJFTV2PEM2N03100BTXRJFTV2PEM2N05100BTX RJFTV2PEM2N10100BTX

RJFTV2PEM2N15100BTX RJFTV2SA2G05100BTXRJFTV2SA2G10100BTX RJFTV2SA2N03100BTX RJFTV2SA2N05100BTX

RJFTV2SA2N15100BTXRJFTV72G15100BTX RJFTV75GF459 RJFTV7PEM2G03100BTX RJFTV7PEM2G10100BTXRJFTV7PEM2G15100BTX

RJFTV7SA2G03100BTX RJFTV7SA2G05100BTX RJFTV2SA2G03100BTXRJFTV7PEM1G RJFTV2PEM1N RJFTV2PEM1G RJFTV6MN

RJFTV6MG RJFTV2SA1G RJFTV7SA1GRJFTV22G00 RJFTV22G03100BTX RJFTV22N00 RJFTV22N03100BTX RJFTV75NF459

RJFTV72N10100BTXRJFTV2PE2N03100BTX RJFTV2SA2G15100BTX RJFTV71RAN RJFTV22N15100BTX RJFTV2HA1G

RJFTVC7BZ RJFTVC7ZN RJFTVC7ZC RJFTV2SC2G03100BTX RJFTV7SA2G10100BTX RJFTV2SA2ZN03OPENRJFTV2SA2ZN05OPEN

RJFTV2SA2ZN10OPEN RJFTV7PEM2G10OPEN RJFTV7SA1GISOBRUTRJFTV7SA2N03OPENF312 RJFTV7SA2ZN03OPEN

RJFTV7SA2ZN05OPENF312 RJFTV7SA2ZN10OPENRJFTVC7ZNF057 RJFTVC7NF05

Packaging:: Bulk

Series:: RJF TV

ProductStatus:: Active

ConvertFrom(AdapterEnd):: Jack, 8p8c (RJ45)

ConvertTo(AdapterEnd):: Jack, 8p8c (RJ45)

Type:: Coupler

Features:: Circular Bayonet Coupling

IngressProtection:: IP67 - Dust Tight, Waterproof

MountingType:: Panel Mount, Square Flange

MountingFeature:: -

Ratings:: Cat5e

Shielding:: Unshielded

Category:: Modular Connectors - Adapters

Datasheet:: RJFTV21G.pdf

1. How to order RJFTV21G on Deyee Tech Limited?

Currently, Deyee Tech Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Deyee Tech Limited guarantee that RJFTV21G is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the RJFTV21G. All suppliers must pass our qualification reviews before they can publish their products including RJFTV21G on Deyee Tech Limited; we pay more attention to the channels and quality of RJFTV21G products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the RJFTV21G price and inventory displayed accurate?

The price and inventory of RJFTV21G fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of RJFTV21G?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RJFTV21G we delivered, we will accept the replacement or return of the RJFTV21G only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of RJFTV21G.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as RJFTV21G pin diagram, RJFTV21G datasheet?

If you need any after-sales service, please do not hesitate to contact us.

Part Number	RJFTV21G	RJFTV21N	RJFTV62A1N	RJFTV2SA1G	RJFTV71G
Manufacturer	Amphenol Socapex	Amphenol Socapex	Amphenol Socapex	Amphenol Socapex	Amphenol Socapex
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Series	RJF TV	RJF TV	RJF TV	RJF TV	RJF TV
ProductStatus	Active	Active	Active	Active	Active
ConvertFrom(AdapterEnd)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)
ConvertTo(AdapterEnd)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)
Type	Coupler	Coupler	Coupler	Coupler	Coupler
Features	Circular Bayonet Coupling	Circular Bayonet Coupling	Circular Bayonet Coupling	Circular Bayonet Coupling	Circular Bayonet Coupling
IngressProtection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
MountingType	Panel Mount, Square Flange	Panel Mount, Square Flange	Panel Mount, Square Flange	Panel Mount, Square Flange	Panel Mount, Square Flange
MountingFeature	-	-	-	-	-
Ratings	Cat5e	Cat5e	Cat5e	Cat5e	Cat5e
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
