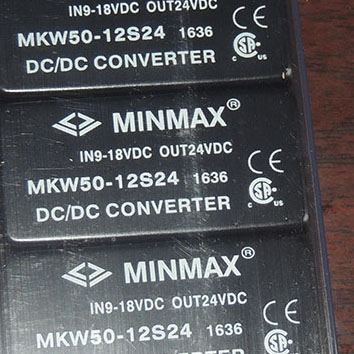

MKW50-12S24
FEATURES
►Smallest Encapsulated 50W Converter
►Ultra-compact 2" X 1" Package
►Wide 2:1 Input Voltage Range
►Fully Regulated Output Voltage
►Excellent Efficiency up to 92%
►I/O Isolation 1500 VDC
►Operating Ambient Temp. Range -40℃ to +80℃
►No Min. Load Requirement
►Overload/Voltage/Temp. and Short Circuit Protection
►Remote On/Off Control, Output Voltage Trim
►Shielded Metal Case with Insulated Baseplate
►UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval & CE Marking
PRODUCT OVERVIEW
The MINMAX MKW50 series is the latest generation of high performance DC-DC converter modules setting a new standard concerning power density.
Theproduct offers fully 50W in an encapsulated, shielded metal package with dimensions of just 2.0"x1.0"x0.4".
All models provide wide 2:1 input voltage rangeand precisely regulated output voltages.
Advanced circuit topology provides a very high efficiency up to 92% which allows an operating temperature range of -40℃ to +80℃.
Further featuresinclude remote On/Off, trimmable output voltage, under-voltage shutdown as well as overload and over-temperature protection.
Typical applications forthese converters are battery operated equipment, instrumentation, distributed power architectures in communication and industrial electronics and manyother space critical applications.\
Model Selection Guide
MKW50-12S03 312( 9 ~ 18 )3.3 10000 3090 85503.9 25800 89
MKW50-12S05 5 10000 4630 110 6.2 17000 90
MKW50-12S12 12 4170 4580 160 15 2900 91
MKW50-12S15 15 3330 4580 160 18 1900 91
MKW50-12S24 24 2080 4570 250 30 750 91
MKW50-24S03324( 18 ~ 36 )3.3 10000 1550 50403.9 25800 89
MKW50-24S05 5 10000 2260 70 6.2 17000 92
MKW50-24S12 12 4170 2260 85 15 2900 92
MKW50-24S15 15 3330 2260 85 18 1900 92
MKW50-24S24 24 2080 2290 110 30 750 91
MKW50-48S03348( 36 ~ 75 )3.3 10000 770 35303.9 25800 89
MKW50-48S05 5 10000 1130 45 6.2 17000 92
MKW50-48S12 12 4170 1130 50 15 2900 92
MKW50-48S15 15 3330 1130 50 18 1900 92
MKW50-48S24
Order Code TableStandard With heatsink
MKW50-12S033 MKW50-12S033-HS
MKW50-12S05 MKW50-12S05-HS
MKW50-12S12 MKW50-12S12-HS
MKW50-12S15 MKW50-12S15-HS
MKW50-12S24 MKW50-12S24-HS
MKW50-24S033 MKW50-24S033-HS
MKW50-24S05 MKW50-24S05-HS
MKW50-24S12 MKW50-24S12-HS
MKW50-24S15 MKW50-24S15-HS
MKW50-24S24 MKW50-24S24-HS
MKW50-48S033 MKW50-48S033-HS
MKW50-48S05 MKW50-48S05-HS
MKW50-48S12 MKW50-48S12-HS
MKW50-48S15 MKW50-48S15-HS
MKW50-48S24 MKW50-48S24-HS
