中国航天CASC J30J-25ZKN

J30J-25ZKN
Part No.:
J30J-25ZKN
Manufacturer:
中国航天CASC
Category:
USB, DVI, HDMI Connectors
Package:
Datasheet:
Deyee Tech  LimitedJ30J-25ZKN.pdf
Description:
high-density micro rectangular connector
Quantity:

Unit Price:$0

Ext Price:$0

Product details

  • Details
  • Specifications
  • FAQ
  • Product Comparison
  • Related Categories

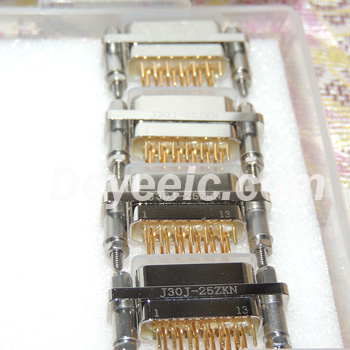

The J30J-25ZKN is a high-density micro rectangular connector designed for reliable electrical connections in demanding environments.

Its key functional characteristics include:

  • Contact Configuration: 25-pin socket with female contacts (ZK indicates socket with female contacts, N denotes straight PCB mounting)

  • Contact Technology: Utilizes twisted-wire flexible pins (commonly called "hemp pins")

  • with each contact point having seven contact points, significantly improving contact reliability

  • Grid Spacing: Features 1.27mm grid spacing for high-density contact arrangement,

  • with multiple spacing options available (1.27×2.54mm, 2.54×1.6mm, 2.54×2.54mm)

  • Environmental Resistance: Operates in temperatures from -55°C to +125°C and withstands humidity up to 95% at +40°C

  • Electrical Performance:

    • Contact resistance ≤10mΩ

    • Insulation resistance ≥5000MΩ

    • Dielectric withstand voltage: 800V

    • Rated current: 3A

  • Mechanical Durability: 500 mating cycles and vibration resistance of 10-2000Hz at 196m/s²

Primary Applications

The J30J-25ZKN connector finds extensive use in applications requiring compact, lightweight, and reliable interconnections:

  1. Aerospace Systems: Used in avionics and aircraft instrumentation due to its compliance with GJB2446 standards

  2.  (equivalent to MIL-C-83513) and ability to withstand harsh environmental conditions

  3. Military Electronics: Employed in various military electronic devices where space constraints and reliability are critical factors

  4. Communication Equipment: Suitable for high-density signal transmission in compact communication devices

  5. Industrial Control Systems: Used in automation equipment where vibration resistance and long-term reliability are required

  6. Medical Electronics: Occasionally used in medical devices requiring high-density interconnections

Related Model Analys

The J30J series offers numerous variants with different configurations:

By Contact Number:

  • Smaller configurations: J30J-9ZKN (9-pin), J30J-15ZKN (15-pin), J30J-21ZKN (21-pin)

  • Larger configurations: J30J-31ZKN (31-pin), J30J-37ZKN (37-pin), J30J-51ZKN (51-pin), up to J30J-144ZK (144-pin)

By Mounting Type:

  • Straight PCB mount (N-type): J30J-25ZKN (standard), J30J-25ZKNP5 (with P5 lock)

  • Right-angle PCB mount (W-type): J30J-25ZKW

  • Cable mount (no suffix): J30J-25ZK (for cable termination)

By Special Features:

  • Fast-lock versions: J30JA-25ZKN (A-series with quick-lock mechanism)

  • High-temperature versions: J30J-25ZKN with G suffix (high-temperature resistant up to 185°C)

  • Filtered versions: J30JL-25ZKN (L-series with filtering function)

  • Wider flange versions: J30JQ-25ZKN (Q-series with wider flange for better mounting)

Equivalent International Models:

The J30J series is designed to be interchangeable with:

  • American MDM series connectors

  • MIL-C-83513 compliant connectors

Technical Comparison with Similar Models

Model Pins Mounting Lock Type Special Features Typical Applications
J30J-25ZKN 25 Straight PCB (N) Optional (P-series) Standard General electronics
J30J-25ZKNP5 25 Straight PCB P5 lock Enhanced locking Vibration environments
J30J-25ZKW 25 Right-angle PCB Optional Space-saving Compact devices
J30JA-25ZKN 25 Straight PCB Quick-lock Fast mating/demating Field serviceable equipment
J30J-25ZKWP7 25 Right-angle PCB P7 lock Secure connection Military comms
J30J-25ZKNP5-J 25 Straight PCB P5 lock 1.27×2.54mm grid Specific PCB layouts

Selection Considerations

When choosing between J30J variants, consider:

  1. Contact Configuration: Ensure proper gender (ZK for socket, TJ for plug) and pin count match your requirements

  2. Mounting Style: Select straight (N), right-angle (W), or cable mount based on installation constraints

  3. Locking Mechanism: Choose appropriate lock type (P-series for vibration resistance) if needed

  4. Environmental Requirements: Consider temperature, humidity, and vibration specifications

  5. PCB Compatibility: Verify grid spacing (1.27×2.54mm standard or 1.27×1.1mm for some variants)

Packaging:
Series:
RoHS:
Gender:
Features:
Shielding:
Part Status:
Termination:
Mating Cycles:
Mounting Type:
Connector Type:
Specifications:
Number of Ports:
Voltage - Rated:
Mounting Feature:
Ingress Protection:
Number of Contacts:
Current Rating (Amps):
Operating Temperature:
Category:
USB, DVI, HDMI Connectors
Datasheet:
Deyee Tech  LimitedJ30J-25ZKN.pdf

1. How to order J30J-25ZKN on Deyee Tech Limited?

Currently, Deyee Tech Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Deyee Tech Limited guarantee that J30J-25ZKN is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the J30J-25ZKN. All suppliers must pass our qualification reviews before they can publish their products including J30J-25ZKN on Deyee Tech Limited; we pay more attention to the channels and quality of J30J-25ZKN products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the J30J-25ZKN price and inventory displayed accurate?

The price and inventory of J30J-25ZKN fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of J30J-25ZKN?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the J30J-25ZKN we delivered, we will accept the replacement or return of the J30J-25ZKN only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of J30J-25ZKN.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as J30J-25ZKN pin diagram, J30J-25ZKN datasheet?

If you need any after-sales service, please do not hesitate to contact us.
