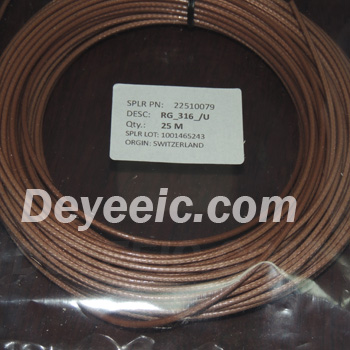

RG316, 50 Ohm, 3 GHz, 200°C, ø2.5 mm, FEP jacket RG_316_/U

Properties

• Mil standard RG cable
• Excellent RF peormance
for precision applications
• Suitable for use in
applications up to 3 GHz

• Extended temperature
range
Construction

Component Material Detail Diameter
Centre conductor Steel, Copper + Silver plated Strand-07 0.54 mm
Dielectric PTFE (Polytetrafluoroethylene) 1.55 mm
Outer conductor Copper, Silver plated Braid, 95% 2 mm
Jacket FEP (Fluorinated ethylene propylene) RAL 8015 - br 2.5 mm +/- 0.1 mm

Electrical data
Impedance 50 Ω +/-2Ω
Operating frequency ≤ 3 GHz
Capacitance 97 pF/m
Velocity of signal propagation 69 %
Signal delay 4.86 ns/m
Screening e>ectiveness 38 dB at frequency 0.0001 GHz ... 1GHz
Insulation resistance 100000000 MΩ*m
Inner conductor resistance 235 Ω/km
Operating Voltage (at sea level) ≤ 1.5 kVrms
Test voltage (50 Hz/1 min) ≤ 3 kVrms

Mechanical data
Weight approx. 16 g/m
Static bending radius ≥ 15 mm
Repeated bending radius 25 mm
Dynamic bending radius < 37.5 mm
