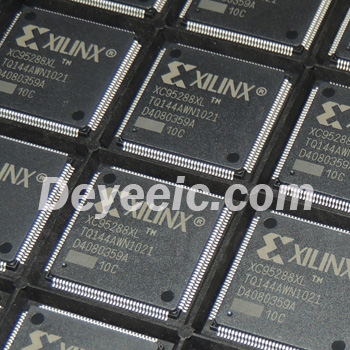

XC95288XL-10TQ144C  Complex Programmable Logic Device (CPLD)

The XC95288XL-10TQ144C is a Complex Programmable Logic Device (CPLD) from Xilinx (now part of AMD),

designed for high-performance, low-power digital logic applications.

It is part of the XC9500XL family, optimized for 3.3V systems with fast signal processing capabilities.

Key Features:

1. Logic Capacity – 2,880 usable gates with 16 Function Blocks (FBs), each containing 18 macrocells.

2. Speed – 10ns pin-to-pin propagation delay, supporting high-speed logic operations.

3. I/O Pins – 119 user I/O pins in a TQFP-144 package.

4. Voltage Support – Operates at 3.3V, with 5V-tolerant inputs for mixed-voltage systems.

5. In-System Programmability (ISP) – Supports JTAG-based programming for field updates

6. Low Power Consumption – Uses Flash-based technology, reducing standby power.

7. Temperature Range – Commercial-grade (0°C to +70°C) operation.

Typical Applications:

• Embedded Systems – Glue logic, bus interfacing, and control logic.

• Communications – Signal routing, protocol bridging (UART, SPI, I²C).

• Industrial Automation – Motor control, sensor interfacing, and PLCs.

• Consumer Electronics – Display controllers, remote control systems.

• Medical Devices – Portable diagnostic equipment with low-power requirements.

Advantages:

• Fast signal processing (up to 208 MHz internal frequency).

• Reconfigurable logic without requiring external memory.

• Cost-effective compared to FPGAs for simpler logic designs.

This CPLD is ideal for applications needing quick logic integration, low power, and reprogrammability.

XC95288XL Series Overview

The XC95288XL is part of Xilinx's XC9500XL family, a 3.3V low-power, high-performance CPLD series designed for glue logic, interface bridging, and control applications.

It combines fast pin-to-pin delays with in-system programmability, making it ideal for rapid prototyping and field upgrades.

Key Features of the XC95288XL Series

1. Logic Capacity

   • 2,880 usable gates (16 function blocks × 18 macrocells each).

   • Supports wide-input logic functions (up to 36 inputs per block).

2. Performance

   • 10ns (10TQ) or 7ns (7TQ) pin-to-pin propagation delay options.

   • Internal toggle frequencies up to 208 MHz.

3. I/O Flexibility

   • 5V-tolerant inputs (3.3V operation) for mixed-voltage designs.

   • 119 user I/O pins (TQFP-144 package variant).

4. Low Power

   • Flash-based technology (zero standby power consumption).

   • Typical standby current: 50 µA.

5. Programming & Security

   • JTAG (IEEE 1149.1) in-system programming (ISP).

   • Supports AES bitstream encryption (selected models).

6. Packaging Options

   • TQFP-144 (10TQ144C/7TQ144C): Common for industrial/consumer apps.

   • VQFP-100 (10VQ100C/7VQ100C): Compact footprint.

Available Models in the XC95288XL Series

Typical Applications

• Interface Bridging: PCI to local bus, UART/SPI/I2C protocol conversion.

• Control Logic: State machines, PWM generation, glue logic for CPUs/FPGAs.

• Industrial: PLCs, motor control, sensor conditioning.

• Consumer: Remote controls, display drivers, power management.

• Medical: Portable device control, low-power monitoring systems.

Design Tools & Ecosystem

• Development Tools: Xilinx ISE WebPACK (legacy) or Vivado (with CPLD support).

• IP Cores: Pre-built logic functions (counters, FIFOs) for rapid integration.

• Debugging: JTAG-based real-time probing.

Why Choose XC95288XL?

• Cost-Effective: Lower price than FPGAs for simple logic tasks.

• Reliable: Non-volatile Flash storage (no boot-up delay).

• Easy Migration: Pin-compatible with older XC9500 series.

This series is ideal for low-to-medium complexity designs requiring fast response times, reprogrammability, and mixed-voltage support.
