Name: LMZ22005TZ/NOPB
Brand: Texas Instruments
SKU: LMZ22005TZ/NOPB
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Home > Products > Power Supplies - Board Mount > DC DC Converters

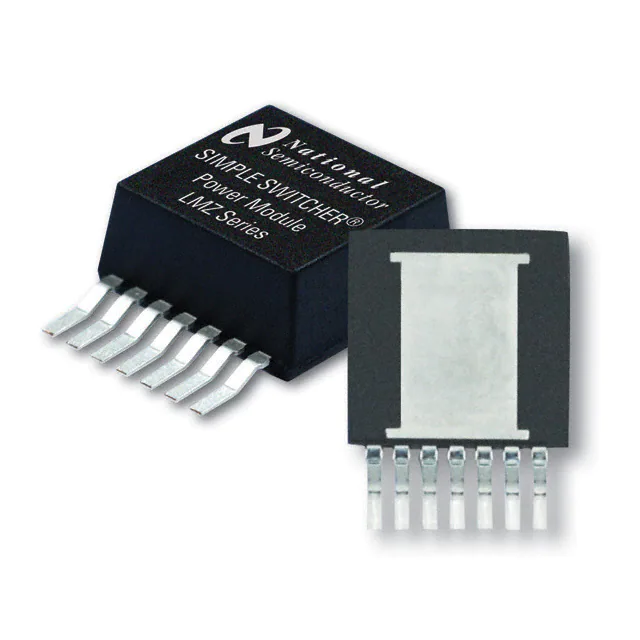

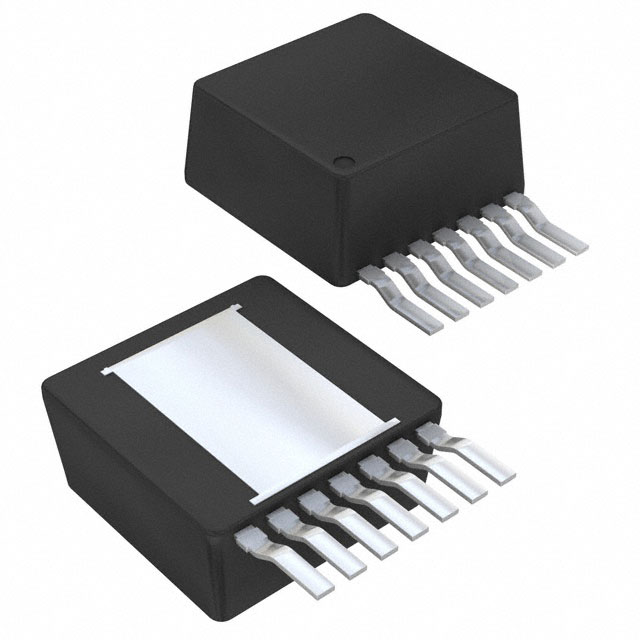

Texas Instruments LMZ22005TZ/NOPB

Part No.:: LMZ22005TZ/NOPB

Manufacturer:: Texas Instruments

Category:: DC DC Converters

Package:: TO-PMOD-7, Power Module

Datasheet:: LMZ22005TZ/NOPB.pdf

Description:: DC DC CONVERTER 0.8-6V

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

LMZ22005TZ/NOPB

Functions

Input and Output Voltage Ranges: It can accept an input voltage rail between 6V and 20V,
and provide an adjustable and highly accurate output voltage ranging from 0.8V to 6V.
This wide input voltage range makes it suitable for various power supply sources,
and the adjustable output voltage can meet the requirements of different loads.
High - Current Output Capability: The LMZ22005TZ is capable of driving up to 5 - A load,
meeting the high - current demand of some devices.
High - Efficiency Conversion: It has an efficiency of up to 92%,
which helps reduce power loss and heat generation, improving the overall efficiency of the power supply system.
Frequency Synchronization: It has a frequency synchronization input that allows synchronization
within the 650 - kHz to 950 - kHz switching frequency range, which can reduce electromagnetic interference and is beneficial for the stability of the entire system.
Protection Features: It provides comprehensive protection functions, including thermal shutdown,
input under - voltage lockout, output over - voltage protection, short - circuit protection,
and output current limit. These protection functions can effectively protect the power module and the load from damage under abnormal conditions.
Flexible Start - up Sequencing: Through external soft - start, tracking, and precision enable,
flexible start - up sequencing control can be achieved, which is convenient for system integration and debugging.
Simple PCB Layout: With only 5 external components, namely two external resistors and three external capacitors,
it simplifies the PCB layout and reduces the complexity of the circuit design. In addition, it uses a single exposed pad,
which is easy to mount and manufacture, and can also use the PCB as a heat sink, without the need for an additional air - flow system.

Applications

Consumer Electronics
- Portable Devices: Such as tablets, e - readers, and handheld game consoles. It can convert the input voltage from power adapters
- (such as 5V - 12V) to the required voltage for the normal operation of internal components such as processors, displays, and sensors.
- Charging Systems: It is applicable to USB PD chargers and battery banks, which can provide adjustable output voltages
- (such as 3.3V, 5V, 9V) to meet the fast - charging requirements of different devices.
Industrial Applications
- Automation Control: In industrial automation systems, it can convert the 24V industrial power supply rail to adjustable voltages
- (such as 5V, 12V) to supply power to programmable logic controllers (PLCs), human - machine interfaces (HMIs),
- motor drivers, and other devices, ensuring the stable operation of the control system.
- Sensor Networks: It is suitable for powering IoT sensors and edge devices in harsh industrial environments.
- It can adapt to wide - range voltage fluctuations and different temperature conditions, ensuring the reliable operation of sensors and edge devices.

Package/Case:: TO-PMOD-7, Power Module

Packaging:: Tube

Series:: SIMPLE SWITCHER®

ProductStatus:: Active

Type:: Non-Isolated PoL Module

NumberofOutputs:: 1

Voltage-Input(Min):: 6V

Voltage-Input(Max):: 20V

Voltage-Output1:: 0.8 ~ 6V

Voltage-Output2:: -

Voltage-Output3:: -

Voltage-Output4:: -

Current-Output(Max):: 5A

Power(Watts):: -

Voltage-Isolation:: -

Applications:: ITE (Commercial)

Features:: UVLO

OperatingTemperature:: -40°C ~ 125°C

Efficiency:: 92%

MountingType:: Surface Mount

Size/Dimension:: 0.40 L x 0.39 W x 0.18 H (10.2mm x 9.9mm x 4.6mm)

ControlFeatures:

ApprovalAgency:

Category:: DC DC Converters

Datasheet:: LMZ22005TZ/NOPB.pdf
