Product Description

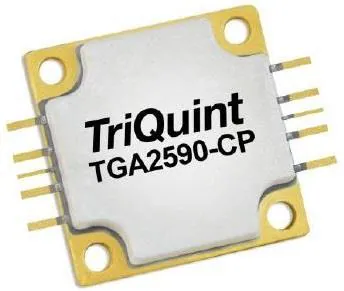

Qorvo's TGA2590-CP is a wideband MMIC poweramplifier fabricated on Qorvo's QGaN25 0.25um GaN onSiC process.
The TGA2590-CP operates from 6-12GHzand provides 30W of saturated output power with >22dBof large signal gain and >30% power-added efficiency.
The TGA2590-CP is offered in a 10-lead 15 x 15 mm boltdown package. The package has a pure Cu base, offeringsuperior thermal management.
The TGA2590-CP is fully matched to 50 Ω with DCblocking caps at both RF ports allowing for simple systemintegration.
The broadband performance supports bothelectronic warfare and radar opportunities across defenseand commercial markets.
Lead-free and RoHS compliant.
Product Features
• Frequency Range: 6 – 12 GHz• POUT: 45 dBm @ PIN = 23 dBm• PAE: >30% @ PIN = 23 dBm• Small Signal Gain: 35 dB
• Bias: VD = +20 V (CW), IDQ = 2 A, VG = −2.4 V typical• Package Dimensions: 15.2 x 15.2 x 3.5 mm
• Package base is pure Cu offering superior thermalmanagementPerformance is typical across frequency.
Pleasereference electrical specification table and data plots formore details
Applications
• Electronic Warfare• Commercial and Military Radar
Currently, Deyee Tech Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
We have a professional and experienced quality control team to strictly verify and test the Qorvo's TGA2590-CP. All suppliers must pass our qualification reviews before they can publish their products including TGA2590-CP on Deyee Tech Limited; we pay more attention to the channels and quality of TGA2590-CP products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.
The price and inventory of TGA2590-CP fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the TGA2590-CP we delivered, we will accept the replacement or return of the TGA2590-CP only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of TGA2590-CP.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
If you need any after-sales service, please do not hesitate to contact us.
Image | ![]() |
![]() |
![]() |
![]() |
![]() |

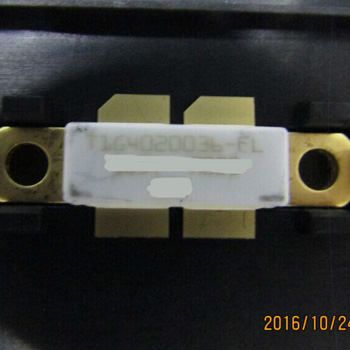

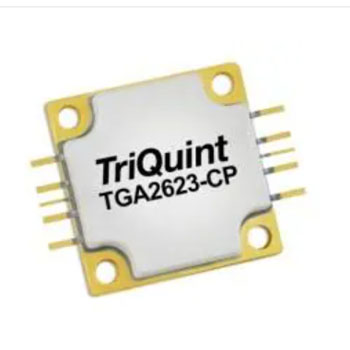

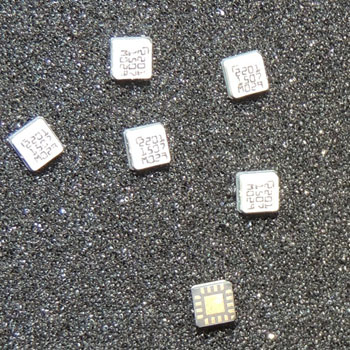

Part Number | TGA2590-CP | T1G4020036-FL | TGA2623-CP | TGL2201-SM | TGL2223 |
