HY2113-RB1A

Part No.:: HY2113-RB1A

Manufacturer:: HYCON Technology

Category:: The Posts

Package:

Datasheet:: HY2113-RB1A.pdf

Description:: protection IC by HYCON

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

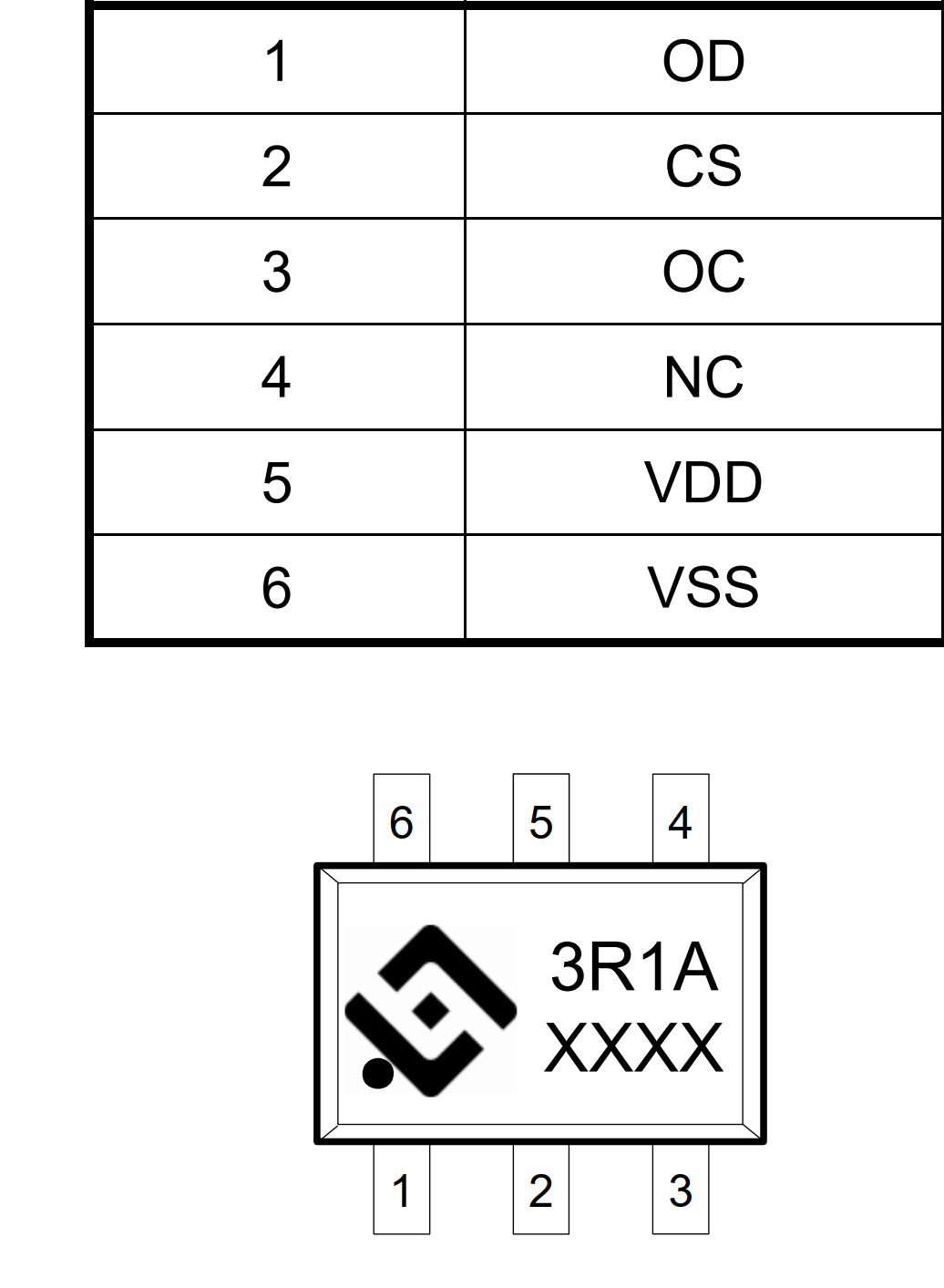

The HY2113-RB1A is a protection IC designed for single-cell rechargeable lithium-ion/polymer batteries, (Marking-3R1A)

offering comprehensive safeguards and high precision. Key functions include:

High-Accuracy Voltage Detection
- Overcharge Detection: 4.280V (±25mV accuracy)
- Overcharge Release: 4.130V (±50mV accuracy)
- Overdischarge Detection: 2.80V (±50mV accuracy)
- Overdischarge Release: 3.10V (±50mV accuracy) .
Overcurrent Protection
- Discharge Overcurrent: 25–250mV (±15mV accuracy)
- Charging Overcurrent (optional): Configurable threshold
- Short-Circuit Detection: Fixed 0.85V (±0.3V accuracy) 13.
Low-Power Operation
- Active Mode: 3.0μA typ. (max. 6.0μA at VDD=3.9V)
- Sleep Mode: Max. 0.1μA (VDD=2.0V) 13.
Additional Features
- High-Voltage Tolerance: CS/OC pins rated for 20V
- 0V Battery Charging: Configurable via pin selection
- Wide Temperature Range: -40°C to +85°C
- Compact Packages: DFN-1.8×2.0-6L or SOT-23-6 .
Safety Mechanisms
- Over-temperature protection and reverse polarity prevention
- Halogen-free and RoHS-compliant design .

Applications

The HY2113-RB1A is ideal for single-cell Li-ion/Li-Po battery packs in:

Portable Electronics: Electric toothbrushes, smart door sensors, and small power banks .
Wearables: Fitness trackers and wireless earbuds requiring long standby times.
IoT Devices: Smart home sensors and low-power monitoring systems.
Consumer Appliances: Handheld tools and medical devices with space-constrained designs.

HY2113-AB1A	SOT-23-6	4.280 V
HY2113-BB1A	SOT-23-6	4.325 V
HY2113-CB1A	SOT-23-6	4.275 V
HY2113-DB1A	SOT-23-6	4.275 V
HY2113-EB1B	SOT-23-6	4.300 V
HY2113-FB2B	SOT-23-6	4.250 V
HY2113-GB3A	SOT-23-6	4.280 V
HY2113-HB3A	SOT-23-6	4.280 V
HY2113-IB2C	SOT-23-6	4.190 V
HY2113-JB1B	SOT-23-6	4.275 V
HY2113-KB5B	SOT-23-6	4.250 V
HY2113-KB5F	SOT-23-6	4.250 V
HY2113-K5BF	SOT-23-6	4.250 V
HY2113-LB1A	SOT-23-6	4.200 V
HY2113-MB1A	SOT-23-6	4.280 V
HY2113-MB1B	SOT-23-6	4.280 V
HY2113-NB4A*	SOT-23-6	4.380 V
HY2113-NB4B*	SOT-23-6	4.380 V
HY2113-OB1A	SOT-23-6	4.400 V
HY2113-OB1B	SOT-23-6	4.400 V
HY2113-OB1C	SOT-23-6	4.400 V
HY2113-PB5B	SOT-23-6	4.250 V
HY2113-RB1A	SOT-23-6	4.280 V
HY2113-UB2B	SOT-23-6	4.475 V
HY2113-UB4L	SOT-23-6	4.475 V
HY2113-UB6C	SOT-23-6	4.475 V
HY2113-WB2B	SOT-23-6	4.425 V
HY2113-YB2C	SOT-23-6	4.475 V
HY2113-AH1A	SON-1.6*1.6-6L	4.280 V
HY2113-CH1A	SON-1.6*1.6-6L	4.275 V
HY2113-GH3A	SON-1.6*1.6-6L	4.280 V
HY2113-MH1B	SON-1.6*1.6-6L	4.280 V
HY2113-OH1A	SON-1.6*1.6-6L	4.400 V
HY2113-OH1B	SON-1.6*1.6-6L	4.400 V
HY2113-OH1C	SON-1.6*1.6-6L	4.400 V
HY2113-RH1A	SON-1.6*1.6-6L	4.280 V
HY2113-UH4L	SON-1.6*1.6-6L	4.475 V
HY2113-UH2B	SON-1.6*1.6-6L	4.475 V
HY2113-UH6C	SON-1.6*1.6-6L	4.475 V
HY2116-AB6B	SOT-23-6	4.280 V
HY2116-BB6A	SOT-23-6	4.350 V
HY2116-DB6B	SOT-23-6	4.275 V
HY2116-FB5B	SOT-23-6	4.300 V
HY2116-HB2B	SOT-23-6	4.420 V
HY2116-GB2B	SOT-23-6	4.425 V
HY2116-OB6A	SOT-23-6	4.425 V
HY2116-OB6B	SOT-23-6	4.425 V
HY2116-UB2B	SOT-23-6	4.475 V
HY2116-DH6B	SON-1.6*1.6-6L	4.275 V
