General Description

The ML1-0110SM is a Surface Mount Microlithic™ double balanced mixer. As with all Microlithic™ mixers, it features excellent conversion loss, isolation,

and spurious performance across a broad bandwidth and in a miniaturized form factor. Accurate, nonlinear software models are available for Microwave Office through the Marki Microwave PDK.

The ML1-0110SM is a lead free, RoHS compliant package compatible with standard leaded and lead-free solder reflows. SMA connectorized evaluation packages are available.

The ML1-0110SM is an excellent alternative to Marki Microwave M1 and M3 mixers packaged in surface mount packages such as the EZ package.

Features

• Compact SMT Style Package (0.152" x 0.090"x0.045")
• CAD Optimized for Superior Isolation and Spurious Response
• Broadband Performance
• Excellent Unit-to-Unit Repeatability
• Fully nonlinear software models available with Marki PDK for Microwave Office
• RoHS Compliant
•

• Part Ordering Options
  Part Number Description Package Green Status Product Lifecycle Export Classification Recommended Replacement
  ML1-0110LSM-1 Microlithic™ Double-Balanced Mixer SMT
  REACH

  RoHS

  End of Life EAR99
  -

  ML1-0110LSM-2 Microlithic™ Double-Balanced Mixer SMT
  REACH

  RoHS

  End of Life EAR99
  -

  ML1-0110HSM-1 Microlithic™ Double-Balanced Mixer SMT
  REACH

  RoHS

  End of Life EAR99
  -

  ML1-0110HSM-2 Microlithic™ Double-Balanced Mixer SMT
  REACH

  RoHS

  End of Life EAR99
  -

  ML1-0110SSM-2 Microlithic™ Double-Balanced Mixer SMT
  REACH

  RoHS

  Obsolete EAR99
  -

  ML1-0110SSM-1 Microlithic™ Double-Balanced Mixer SMT
  REACH

  RoHS

  Obsolete EAR99
  -

  EVAL-ML1-0110S Evaluation Board, Microlithic™ Double-Balanced 1.5 - 10 GHz Mixer EVAL
  REACH

  RoHS

  Obsolete EAR99
  -

  EVAL-ML1-0110L Evaluation Board, Microlithic Double-balanced 1.5 - 10 GHz Mixer EVAL
  REACH

  RoHS

  End of Life EAR99
  -

  EVAL-ML1-0110H Evaluation Board, Microlithic™ Double-Balanced Mixer EVAL
  REACH

  RoHS

  End of Life EAR99
• Table Of Contents
  Device Overview
  General Description
  Features
  Applications
  Functional Block Diagram
  Port Configuration and Functions
  Port Functions
•
  General Description
  Features
  Applications
  Functional Block Diagram
  Port Configuration and Functions
  Port Functions
  Specifications
  Absolute Maximum Ratings
  Package Information
  Electrical Specifications
  Typical Performance Plots
  Spur Tables
  Mechanical Data
  Outline Drawing
  Footprint Image
  Evaluation Board
  Notes
  Absolute Maximum Ratings
  Parameter Maximum Rating Unit
  IF DC Current 50 mA
  LO DC Current 1 Amp
  Maximum Operating Temperature -55 °C
  Maximum Operating Temperature 100 °C
  Maximum Storage Temperature 125 °C
  Minimum Storage Temperature -65 °C
  RF DC Current 1 Amp
  RF Power Handling (RF+LO), 100°C 20 dBm
  RF Power Handling (RF+LO), 25°C 25 dBm
•


  Downconversion Spurious Suppression

  Spurious data is taken by selecting RF and LO frequencies (+mLO+nRF) within the RF/LO bands, to create a spurious output within the IF band.

  The mixer is swept across the full spurious band and the mean is calculated. The numbers shown in the table below are for a -10 dBm RF input.
• Spurious suppression is scaled for different RF power levels by (n-1),
• where "n" is the RF spur order. For example, the 2RFx2LO spur is 68 dBc for the H-diode version for a -10 dBm input, so a -20 dBm RF input creates a spur that is (2-1) x (-10 dB) dB lower, or 78 dBc.
• Unless otherwise specified L diode data taken with +10 dBm LO drive, H diode data is taken with +17 dBm LO drive, S diode data is taken with +17 dBm LO drive.
  Upconversion Spurious Suppression
  Spurious data is taken by mixing an input within the IF band, with LO frequencies (+mLO+nIF), to create a spurious output within the RF output band.
• The mixer is swept across the full spurious output band and the mean is calculated. The numbers shown in the table below are for a -10 dBm IF input.
• Spurious suppression is scaled for different IF input power levels by (n-1), where "n" is the IF spur order. For example,
• the 2IFx1LO spur is typically 68 dBc for the H-diode version for a -10 dBm input, so a -20 dBm IF input creates a spur that is (2-1) x (-10 dB) dB lower, or 78 dBc.
• nless otherwise specified L diode data taken with +10 dBm LO drive, H diode data is taken with +17 dBm LO drive, S diode data is taken with +17 dBm LO drive.
  Mechanical Data

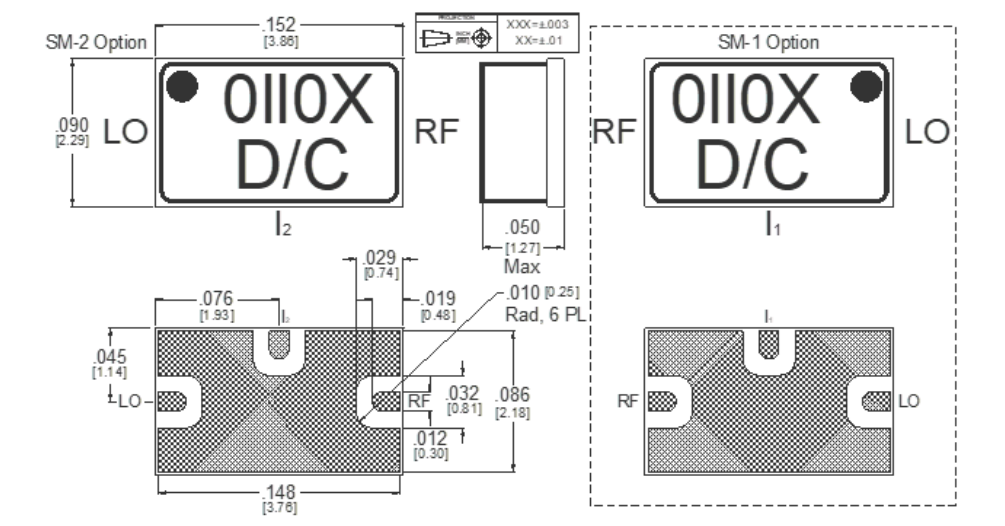

  Outline Drawing
•
