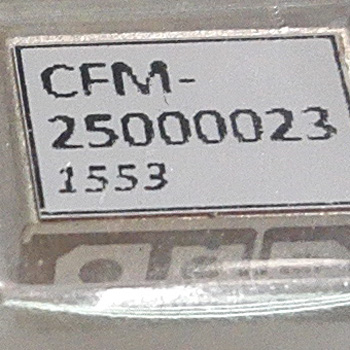

CFM-25000023

Part No.:: CFM-25000023

Manufacturer:: Filtronetics, Inc

Category:: The Posts

Package:: 2635 MHz / 4.5 dB Max

Datasheet:: CFM-25000023.pdf

Description:: SPECIFICATIONCOMMERCIALLY AVAILABLECERAMIC BAND PASSPART NUMBER: CFM-25000023

Quantity:: RFQ Add To RFQ list Buy Now Add To Cart

Unit Price:$0

Ext Price:$0

Product details

Details
Specifications
FAQ
Product Comparison
Related Categories

CFM-25000023

THIS SPECIFICATION APPLIES TO A BAND PASS FILTER, USING DIELECTRIC RESONATORS.

FILTRONETICS CF-26000204

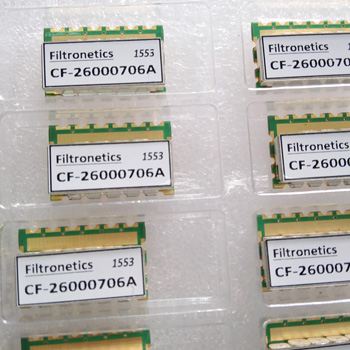

FILTRONETICS CF-26000706

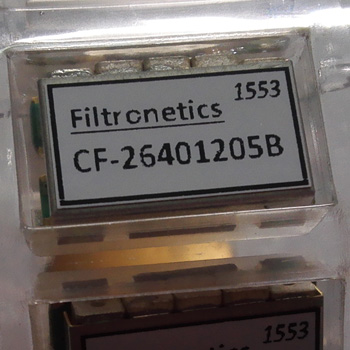

FILTRONETICS CF-26401205
FILTRONETICS CF-30000025

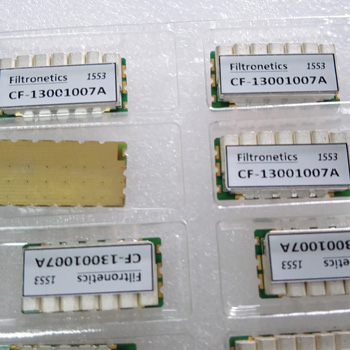

FILTRONETICS CF13001007
FILTRONETICS SF2641097

Filtronetics, Inc, is a pioneer in the development and manufacture of RF Products. Our design expertise makes us the number one choice of global defense and telecommunications industries.

Filtronetics, Inc. employs a technical/engineering staff with decades of combined experience in Electrical Engineering, Auto-Cad, Hi-Reliability, Physics, Applied Mathematics and Mechanical Engineering.

Filtronetics has 5 decades of experience in the RF Industry. Experience that transforms your design obstacles into our solutions.

We employ a technical/engineering staff with an average of 20+ years experience per person. Their range of expertise includes Electrical Engineering,

Mechanical Engineering, Auto-Cad, Hi-Reliability Design & Assembly, PC Board Layout, Test & Verification and Specialized Troubleshooting.

FN-4173W 720 MHz D.C. ~ 324 MHz / 35 dB Min // 1390 MHz to 2 GHz / 35dB Min
2 dB Max
1dB Max
1.74 x 0.50 x 0.62 in
FN-4474W 975 MHz 550 MHz / 60dB min // 1400 MHz / 60 dB min
2.0 dB Max within 715-1235 MHz
1 dB Max
2.38 x 1.00 x 0.50 in
FNP-1361W 1000 MHz 225 MHz / 1.5 dB Max
500 MHz / 1.5 dB // 1080 MHz / 60 dB
1.5 dB Max
1.5 x 0.67 x 0.40 in
SF1000001 1000 MHz 1 MHz / 3dB Max
Various (download the pdf sheet for details)
5.0 dB Max
5.2 x 5.2 x 1.7 mm (SMD)
CF-10000013A 1000 MHz 1 MHz / 3.0 dB Max
26 MHz / 40 dB Min
22 dB Max at Fo
20 x 16.5 x 7.5 mm (SMD)
FNP-1181 1000 MHz ±2 MHz / 3 dB Max
50 MHz / 60 dB Min
8.0 dB Max
2.37 x 1.0 X 0.74 in (SMA)
CF-10000064 1000 MHz 6 MHz / 3 dB Max
50 MHz / 60 dB Min
8.0 dB Max at Fo
26.0 x 16.5 x 7.5 mm (SMD)
FNP-1465 1000 MHz 5 MHz / 3.0 dB Max
993 MHz / 60 dB Min // 1007 MHz / 60 dB Min // 1007~5000 MHz / 50 dB Min
2.0 dB Max
142.0 x 96.0 x 44.0 mm (SMA)
FNP-1466 1000 MHz 15 MHz / 3.0 dB Max
986.5 MHz / 60 dB Min // 1013.5 MHz / 60 dB Min // 1013.5~5000 MHz / 50 dB Min
2.0 dB Max
164.0 x 63.7 x 41.0 mm (SMA)
CF-10000203 1000 MHz ±10 MHz / 3.0 dB Max
-100 MHz / 30 dB Min // +100 MHz / 30 dB Min
2.5 dB Max in Passband
1.0 dB Max
20.0 x 16.5 x 7.5 mm (SMD)
CF-10000254 1000 MHz Fc±12.5 MHz / 1.0 dB Max
At 900 MHz / 50 dB Min // At 1100 MHz / 50 dB Min
3.0 dB Max in BW
1.0 dB Max in BW
18 x 15 x 5.7 mm (SMD)
CFM-10000254 1000 MHz Fc±12.5 MHz / 1.0 dB Max
At 900 MHz / 45 dB Min // At 1100 MHz / 45 dB Min
2.5 dB Max in BW
1.0 dB Max in BW
13.68 x 13.0 x 5.0 mm (SMD)
CF-10000354 1000 MHz ±17.5 MHz / 1.0 dB Max
At 865 MHz / 50 dB Min // At 1135 MHz / 50 dB Min
3.0 dB Max at Fo
1.0 dB Max in PB
14.00 x 14.00 x 4.3 mm (SMD)
CF-10000366A 1000.0 MHz ±18 MHz / 3.0 dB Max
DC~930MHz / 30.0 dB min // 1070~2400MHz / 30.0 dB Min
3.0 dB Max
1.0 dB Max in Pass Band
26.5 x 15.5 x 5.5 mm (SMD)
CF-10000366 1000.0 MHz ±18 MHz / 3.0 dB Max
DC~930MHz / 30.0 dB min // 1070~2400MHz / 30.0 dB Min
3.0 dB Max
1.0 dB Max in Pass Band
26.5 x 15.5 x 5.5 mm (SMD)
CF-10000405 1000 MHz ±20 MHz / 1.0 dB Max
±200 MHz / 70 dB Min
2.7 dB max at Fo
1.0 dB Max in PB
22.4 x 19 x 5.3 mm (SMD)

CF-10000506 1000 MHz 50 MHz / 3.0 dB Max
At 897 MHz / 60 dB Min // At 1107 MHz / 60 dB Min
2.3 dB Max at Fo
1.0 dB Max in PB
26.5 x 14 x 5.5 mm (SMD)
CFM-10000506B 1000 MHz 975 ~ 1025 MHz / 3 dB Max
At 50 ~ 870MHz / 40 dB Min // At 1125~ 1525 MHz / 40 dB Min // At 1950~ 2050 MHz / 30 dB Min
1.5 dB Max
0.5 dB Max
22.50 x 6.50 x 6.30 mm (SMD)
FNP-1467 1000 MHz 50 MHz / 3.0 dB Max
964.5 MHz / 60 dB Min // 1035.5 MHz / 60 dB Min // 1035.5~5000 MHz / 50 dB Min5
2.0 dB Max
164.0 x 63.7 x 41.0 mm (SMA)
CF-10001006 1000 MHz 100 MHz / 3 dB Max
At 874 MHz / 60 dB Min// At 1134 MHz / 55 dB Min
2.0 dB Max at Fo
2.0 dB Max in Fo±40 MHz
27 x 14.5 x 5.5 mm (SMD)
CF-10003006 1000 MHz 300 MHz / 3.0 dB Max
At 782 MHz / 3 dB Min // At 1242 MHz / 10 dB Min
2.0 dB Max at Fo
2.5 dB Max in Fo±130 MHz
30.0 x 14.0 x 5.5 mm (SMD)
CF-10005005C 1000MHz ±250MHz / 1.5 dB Max
1080MHz / 60 dB Min
1.5 dB Max at Fo
18.4 x 14.0 x 4.5 mm (SMD)
CF-10005005 1000 MHz 500 MHz +/-10% / 1.5 dB Nom
1080 MHz / 60 dB Min
1.5 dB Max at Fo
18.4 x 14.0 x 4.5 mm (SMD)
CF-10005005A 1000 MHz ±250 MHz / 3.0 dB Nom
-350 MHz / 20 dB Min // +430 MHz / 20 dB Min
1.5 dB Max at Fo
1.0 dB Max in PB
18.4 x 14.0 x 4.5 mm (SMD)
CF-10005006 1000 MHz 500 MHz / 3.0 dB Max

At 690 MHz / 15 dB Min // At 1350 MHz / 15 dB Min
2.0 dB Max at Fo
2.5 dB Max in Fo±200 MHz
30.0 x 14.0 x 5.5 mm (SMD)
FNP-1145 1000 MHz 600 MHz / 3.0 dB Max
At DC~250 MHz / 60 dB Min // At 1500~2000 MHz / 30 dB Min
1.5 dB Max
0.8 dB Max in BW
40.6 x 12.7 x 7.0 mm (SMD)
SF1003030 1003 MHz ±15 MHz / 3 dB Max
D.C. 942.0 MHz / 50 dBc Min // 942.0 964.0 MHz / 40 dBc Min // 964.0 967.0 MHz / 40 dBc Min // 1039.0 1040.0 MHz / 13 dBc Min // 1040.0 1084.0 MHz / 15 dBc Min // 1084.0 1559.0 MHz
3.5 dB Max
2.0 dB Max
3.8 x 3.8 x 1.5 mm (SMD)
CF-10060705 1006 MHz 60 MHz / 1.0 dB Max // 70 MHz / 3.0 dB Max
847 to 946.5 MHz / 50 dBc Min // 847 to 946.5 MHz / 12 dBc Min // 1065.5 to 1165 MHz / 22.5 dBc Min // 1065.5 to 1165 MHz / 53 dBc Min
2.5 dB Max at Fo
0.5 dB Max at Fo±24 MHz
17.28 x 15.0 x 4.5 mm (SMD)
CF-10100205 1010 MHz ±10 MHz / 3.0 dB Max
930 MHz / 55 dB Min // 1090 MHz / 55 dB Min
3.2 dB Max
1.0 dB Max in Pass Band
17.28 x 13 x 4.5 mm (SMD)
CF-10100207 1010 MHz 20 MHz ±15% / 3 dB Nom
40 MHz / 40 dB Min
6.8 dB max in Fo
30.0 x 15.5 x 5.5 mm (SMD)
CF-10100206 1010 MHz 20 MHz / 1.0 dB Max
40 MHz / 50 dB Min
3.0 dB Max
38.0 x 20.0 x 7.5 mm (SMD)
CF-10230366A 1023.0 MHz ±18 MHz / 3.0 dB Max
DC~970MHz / 20.0 dB min // 1075~2400MHz / 20.0 dB Min
3.0 dB Max
1.0 dB Max in Pass Band
26.5 x 14 x 5.5 mm (SMD)
CF-10230366 1023.0 MHz ±18 MHz / 3.0 dB Max
DC~970MHz / 20.0 dB min // 1075~2400MHz / 20.0 dB Min
3.0 dB Max
1.0 dB Max in Pass Band
26.5 x 14 x 5.5 mm (SMD)
CF-10240504B 1024 MHz 50 MHz ±10% / 3.0 dBc Max
At 768 MHz / 40 dBc Min // At 1208 MHz / 60 dBc Min
3.0 dB Max at Fo
17.28 x 13 x 4.5 mm (SMD)
CF-10240504A 1024 MHz 50 MHz ±10% / 3.0 dB Max
At 768 MHz / 40 dBc Min // At 1208 MHz / 60 dBc Min
3.0 dB Max at Fo
17.28 x 13 x 4.5 mm (SMD)
CF-10240575A 1024 MHz 57 MHz ±10% / 1.0 dBc Nom
At 779 MHz / 50 dBC Min // At 1280 MHz / 50 dBC Min
3.0 dB Max at Fo
17.78 x 13 x 4.5 mm (SMD)
FN-3439W 1025 to 1150 MHz 5 MHz Typ / -3 dBc at BW
±63 MHz / -60 dBc Min // ±126 MHz / -80 dBc Min // ±250 MHz / -90 dBc Min
1.5 dB Max
9.00 x 3.00 x 2.62 in (SMA)
CFN-10303 1030 MHz 600 MHz / 2.0 dB Max // 1800 MHz / 2.0 dB
600 MHz / 2.0 dB // 1800 MHz / 2.0 dB
2.0 dB Max within 600 MHz~1800 MHz
26.0 x 16.5 x 7.5 mm
CF-10300024 1030 MHz ±1 MHz / 1.0 dB Max
50 MHz / 20 dB Min
3.8 dB max at Fo
13.7 x 13 x 4.3 mm (SMD)
SF1030300A 1030 MHz 1025~1035 MHz
DC~910 MHz / 25 dB Min // 1090~1300 MHz / 25 dB Min
1015 MHz~1045MHz / 3.5 dB Max
1.5 dB Max in Pass Band
3.8 x 3.8 x 1.5 mm (SMD)
CF-10300096Q 1030 MHz 9 MHz / 3 dB Max
50 MHz / 45 dB Min
5.0 dB Max in Fo±4.5 MHz
0.8 dB Max in Fo±4.5 MHz
38 x 16 x 8.0 mm (SMD)
CF-10300106Q 1030 MHz ±5 MHz / 1.0 dB Max
±20 MHz / 32 dBc Min
5.5 dB max in BW
1.0 dB Max in BW
38 x 16 x 8 mm (SMD)
CF-10300103H 1030 MHz ±5 MHz / 3.0 dB Max
±15.5 MHz / 20 dB Min
5.0 dB Max at Fo
20.0 X 17.0 X 7.5 mm (SMD)

CF-103001032 1030 MHz ±5 MHz / 3.0 dB Max
±15.5 MHz / 20 dB Min
5.0 dB Max at Fo
20 x 16.5 x 7.5 mm (SMD)
CF-103001031A 1030 MHz 10 MHz Min @ 3dB // 31 MHz Max @ 20 dB
5.0 dB Max @ 1030 MHz
20 x 16.5 x 7.5 mm (SMD)
CF-103001031 1030 MHz ±5 MHz / 3.0 dB Max
±15.5 MHz / 20 dB Min
5.0 dB Max at Fo
20 x 16.5 x 7.5 mm (SMD)
CF-10300103 1030 MHz 10 MHz / 3.0 dB Max
320 MHz / 70 dB Min
3.0 dB Max at Fo
20.0 x 16.5 x 7.5 mm (SMD)
CF-10300148 1030 MHz ±7 MHz / 1.0 dB Max
At 960~1011 MHz / 40 dB Min // At 1050~1215 MHz / 40 dB Min
6.0 dB Max at Fo
1.0 dBc Max in PB
1.34 x 0.55 x 0.22 in (SMD)
CF-10300147A 1030 MHz ±7 MHz / 3 dB Max
Various (download the pdf sheet for details)
7.0 dB Max -40 ~ +25?C, 8.0 dB Max +25 ~ +85?C
2.3 dB Max
44.958 x 12.7 x 7.366 mm (SMD)
CFM-103001410 1030 MHz 14 MHz / 1.5 dB Max
At 960 ~ 1011 MHz / 25 dB Min // At 1050 ~ 1215 MHz / 30 dB Min
8.7 dB Max
1 dB Max
27.2 x 8.45 x 4 mm (SMD)
CF-10300225 1030 MHz ±11 MHz / 3.0 dB Max
@ 950 MHz / 65 dB Min // @ 970 MHz / 55 dB Min // @ 1090 MHz / 55 dB Min // @ 1100 MHz / 65 dB Min
3.5 dB Max (Fo)
21.08 x 14.99 x 5.5 mm (SMD)
FNP-1284 1030 MHz 30 MHz / 0.8 dB Max
At 1090 MHz / 65 dB Min
1.0 dB Max in BW
0.5 dB Max in BW
102.0 x 59.0 x 58.0 mm (SMA)
SF1030030A 1030 MHz 1015 ~ 1045 MHz
DC ~ 910 MHz / 25 dB Min // 1090 ~ 1300 MHz / 25 dB Min
3.0 dB Max
1.0 dB Max
38.0 x 38.0 x 1.5 mm (SMD)
SF1030030B 1030 MHz 30 MHz
DC ~ 910 MHz / 25 dB Min // 1090 ~ 1300 MHz / 25 dB Min
3.0 dB Max
1.0 dB Max
38.0 x 38.0 x 1.5 mm (SMD)
FNP-1074 1030 MHz 35 MHz / 1 dB Max
At 970 MHz / 35 dB Min // At 1090 MHz / 35 dB Min
0.6 dB Max at BW
0.1 dB Max
152.4 x 88 x 38 mm (SMA (F))
FNP-1074S 1030 MHz 35 MHz / 1 dB Max
At 970 MHz / 35 dB Min // At 1090 MHz / 35 dB Min
0.6 dB Max at BW
0.1 dB Max
111.0 x 70.0 x 38 mm (SMA)
CF-10300575 1030 MHz 57 MHz / 1.0 dB Max
At 779 MHz / 50 dBC Min // At 1280 MHz / 50 dBC Min
4.0 dB max in PB
17.28 x 13 x 4.5 mm (SMD)
CF-10300574 1030 MHz 57 MHz / 1.0 dB Max
At 779 MHz / 50 dBC Min // At 1280 MHz / 50 dBC Min
4.0 dB max in PB
14.0 x 14.0 x 4.5 mm (SMD)
CF-10340094 1034.2 MHz .5 dB / 7 min to 11 max
60 MHz / 60 dB Typ;ical
6.0 dB max in PB
26.0 x 14.0 x 8.0 mm (SMD)
CF-10341245A 1034 MHz ±62 MHz / 1.0 dB Max
At 880 MHz / 30 dBc Min // At 1200 MHz / 30 dBc Min
3.0 dB Max in PB
32.76 x 15 x 7.5 mm (SMD)

CF-10341245 1034 MHz ±62 MHz / 1.0 dB Max
At 880 MHz / 30 dBc Min // At 1200 MHz / 30 dBc Min
1.2 dB max in PB
32.76 x 15 x 7.5 mm (SMD)
SF1035040 1035 MHz 40 MHz / 3 dB Max
DC ~ 915 MHz / 45 dB min // 1111.0 ~ 1138.0MHz / 35 dB min // 1200.0 ~ 1400.0MHz / 45 dB min
4.5 dB Max in Pass Band
2.7 dB Max in Pass Band
3.0 x 3.0 x 1.4 mm (SMD)
CF-10380514 1038 MHz ±25.5 MHz / 0.80 dB Max
230 MHz / 40 dB Min
2.0 dB Max at Fo
14.00 x 14.00 x 4.5 mm (SMD)
CF-10400504 1040 MHz 50 MHz ±10% / 3.0 dB Nom
At 90 MHz / 24 dB Min // At 1090 MHz / 18 dB Min
3.5 dB Max at Fo
14.0 x 12.5 x 4.3 mm (SMD)
CF-10401005 1040 MHz 100 MHz ±10% / 3.0 dB Nom
At 940 MHz / 30 dB Min // At 1140 MHz / 25 dB Min
3.0 dB Max at Fo
17.28 x 14 x 4.5 mm (SMD)
CF-10401405 1040 MHz ±70 MHz ±10% / 3.0 dB Nom
At 940 MHz / 30 dB Min // At 1220 MHz / 25 dB Min
3.0 dB Max at Fo
17.28 x 13 x 4.5 mm (SMD)
CF-10440084W 1044 MHz 8 MHz / 0.5 dB Max
±9 MHz / 9.5 dB Min // ±15 MHz / 24.5 dB Min // Fo -44 MHz / 60 dB Min // Fo -88 MHz / 75 dB Min
3.6 dB Max at Fo
0.5 dB Max
26.0 x 17 x 7.5 mm (SMD)
CF-10440185A 1044 MHz 1035 MHz ~ 1053 MHz
50 dBc Min @971.5 MHz // 27 dBc Min @ 1007.5 MHz //27 dBc Min @ 1079.5 MHz // 50 dBc Min @ 1115.5 MHz
5.0 dB Max @ 1044 MHz
1.0 dB Max within 1035 ~ 1053 MHz
22 x 15 x 5.5 mm (SMD)
CF-10500255 1050 MHz 25 MHz / 3.0 dB Max
At 1000 MHz / 60 dB Min // At 1100 MHz / 30 dB Min
3.0 dB Max at Fo
31.14 x 16.99 x 7.5 mm (SMD)
CF-10500405 1050 MHz ±20 MHz / 1.0 dB Max
±200 MHz / 70 dB Min
2.7 dB max at Fo
1.0 dB Max in PB
22.4 x 19 x 5.3 mm (SMD)
CF-10501005 1050 MHz ±50 MHz / 1.0 dB Max
Fo -165 MHz / 55 dB Min // Fo +165 MHz / 48 dB Min
2.0 dB Max in PB
21 x 15 x 5.5 mm (SMD)
CF-10501005A 1050 MHz ±50 MHz / 3 dB Max
Fo -140 MHz / 42 dBc Min // Fo +140 MHz / 45 dBc Min
4.5 dB Max in PB
22.4 x 15 x 5.5 mm (SMD)
SF1060170 1060 MHz 1059.5~1060.5 MHz / 3.0 dB Max
Various (download the pdf sheet for details)
5.0 dB Max
5.2 x 5.2 x 1.7 mm (SMD)
CF-10600564 1060 MHz ±35 MHz / 3.0 dBc Max
At 940 MHz / 40 dBc Min // At 1190 MHz / 40 dBc Min
3.5 dB Max at Fo
19.05 x 13.5 x 5.5 mm (SMD)
CFM-10600706A 1060 MHz 1025~1095 MHz / 1 dB Max
At 978 MHz / 20 dB Min // At 1200 MHz / 30 dB Min
1.2 dB Max
0.5 dB Max
25.00 x 10.00 x 7.30 mm (SMD)
CF-10600705 1060 MHz ±35 MHz / 1.0 dBc Max
At 978 MHz / 35 dBc Min // At 1200 MHz / 30 dBc Min
1.8 dB max in PB
32.0 x 17.0 x 7.5 mm (SMD)
CF-10601405 1060 MHz ±70 MHz ±10% / 3.0 dB Typ
At 920 MHz / 30 dB Min // At 1200 MHz / 25 dB Min
3.0 dB Max at Fo
17.28 x 13 x 4.5 mm (SMD)
SF1070040 1070 MHz 40 MHz / 3 dB Max
DC ~ 950 MHz / 45 dB min // 1139.0 ~ 1173.0MHz / 35 dB min // 1235.0 ~ 1435.0MHz / 45 dB min
4.5 dB Max in Pass Band
2.7 dB Max in Pass Band
3.0 x 3.0 x 1.4 mm (SMD)
CF-10720255 1072 MHz 25 MHz / 3.0 dB Max
At 1000 MHz / 60 dB Min // At 1100 MHz / 30 dB Min
3.0 dB Max at Fo
31.14 x 16.99 x 7.5 mm (SMD)
CF-10830083A 1083 MHz 1079 MHz ~ 1087 MHz
5.0 dB Min @1068 MHz // 5.0 dB min @ 1098 MHz // 28dB Min @ 1146 MHz // 40 dB Min @ 116 ~ 2700 MHz // TBD @ 3380 ~ 4503 MHz
3.0 dB Max within 1079 ~ 1087 MHz
1.0 dB Max within 1079 ~ 1087 MHz
13 x 13 x 5.5 mm (SMD)

Package/Case:: 2635 MHz / 4.5 dB Max

Packaging:

Series:

ProductStatus:

BaseResonator:

Type:

Frequency:

Function:

Output:

Voltage-Supply:

FrequencyStability:

AbsolutePullRange(APR):

OperatingTemperature:

SpreadSpectrumBandwidth:

Current-Supply(Max):: -40 to +85°C

Ratings:

MountingType:

Size/Dimension:

Category:: The Posts

Datasheet:: CFM-25000023.pdf

1. How to order CFM-25000023 on Deyee Tech Limited?

Currently, Deyee Tech Limited only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does Deyee Tech Limited guarantee that CFM-25000023 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the CFM-25000023. All suppliers must pass our qualification reviews before they can publish their products including CFM-25000023 on Deyee Tech Limited; we pay more attention to the channels and quality of CFM-25000023 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the CFM-25000023 price and inventory displayed accurate?

The price and inventory of CFM-25000023 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of CFM-25000023?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CFM-25000023 we delivered, we will accept the replacement or return of the CFM-25000023 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of CFM-25000023.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations

7.How to contact us to get technical supports, such as CFM-25000023 pin diagram, CFM-25000023 datasheet?

If you need any after-sales service, please do not hesitate to contact us.

Part Number	CF-26000706A	CF-13001007A	CF-26401205B	CFM-25000023
Manufacturer	Filtronetics, Inc	Filtronetics, Inc	Filtronetics, Inc	Filtronetics, Inc
Package/Case	2635 MHz / 4.5 dB Max	2635 MHz / 4.5 dB Max	2635 MHz / 4.5 dB Max	2635 MHz / 4.5 dB Max
Packaging
Series
ProductStatus
BaseResonator
Type
Frequency
Function
Output
Voltage-Supply
FrequencyStability
AbsolutePullRange(APR)
OperatingTemperature
SpreadSpectrumBandwidth
Current-Supply(Max)	-40 to +85°C	-40 to +85°C	-40 to +85°C	-40 to +85°C
Ratings
MountingType
Size/Dimension
