Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8L01-05-101RELAY REED SPST 500MA 5V |
430 | 5.39 |
|
Datasheet |
Tube | 8L | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
9201-12-20TRRELAY REED SPST 500MA 12V |
3,635 | 10.23 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 9200 | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | J Lead | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C |
|
|
8L02-24-00RELAY REED DPST 500MA 24V |
2,435 | 6.20 |
|
Datasheet |
Tube | 8L | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8L02-12-00RELAY REED DPST 500MA 12V |
354 | 6.33 |
|
Datasheet |
Tube | 8L | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
9094-05-00RELAY REED SPST 500MA 5V |
3,057 | 6.90 |
|
Datasheet |
Tube | 9094 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
|
|
8L02-24-11RELAY REED DPST 500MA 24V |
2,161 | 7.33 |
|
Datasheet |
Tube | 8L | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
9301-05-00RELAY REED SPST 500MA 5V |
2,406 | 9.70 |
|
Datasheet |
Bulk | 9300 | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | Gull Wing | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C |
|
|
8L41-12-011RELAY REED SPDT 250MA 12V |
2,524 | 10.51 |
|
Datasheet |
Tube | 8L | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
|
8L41-12-111RELAY REED SPDT 250MA 12V |
597 | 10.96 |
|
Datasheet |
Tube | 8L | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
8L61-05-011RELAY REED SPDT 250MA 5V |
3,976 | 11.49 |
|
Datasheet |
Bulk | 8L | Active | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
|
8L61-12-011RELAY REED SPDT 250MA 12V |
341 | 11.59 |
|
Datasheet |
Bulk | 8L | Active | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
2274-12-021RELAY REED SPST 500MA 12V |
443 | 17.22 |
|
Datasheet |
Tube | 2270 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 125°C |
|
7101-12-1100RELAY REED SPST 500MA 12V |
3,600 | 18.36 |
|
Datasheet |
Bulk | 7000 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C |
|

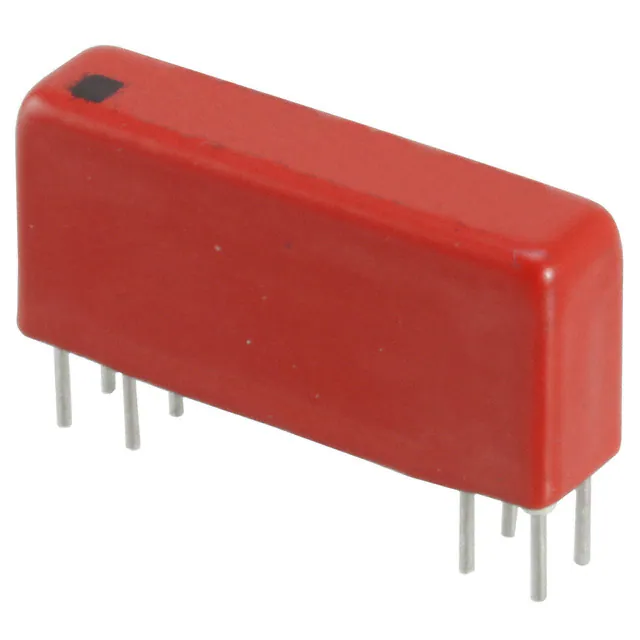

2377-12-020RELAY REED DPST 500MA 12V |
990 | 21.19 |
|
Datasheet |
Tube | 2370 | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 0.5 ms | 0.15 ms | -40°C ~ 125°C |
|
|
2377-05-020RELAY REED DPST 500MA 5V |
116 | 21.19 |
|
Datasheet |
Tube | 2370 | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -40°C ~ 125°C |
|
7102-12-1100RELAY REED DPST 500MA 12V |
3,085 | 21.74 |
|
Datasheet |
Bulk | 7000 | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C |
|
7302-24-1010RELAY REED DPST 500MA 24V |
148 | 21.74 |
|
Datasheet |
Tube | 7000 | Not For New Designs | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C |
|
7302-05-1000RELAY REED DPST 500MA 5V |
180 | 23.58 |
|
Datasheet |
Tube | 7000 | Not For New Designs | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C |
|
|
2271-05-001RELAY REED SPDT 250MA 5V |
338 | 24.04 |
|
Datasheet |
Tube | 2270 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 1 ms | 2 ms | -20°C ~ 125°C |
|
3650-05-92RELAY REED 3PST 250MA 5V |
338 | 24.28 |
|
Datasheet |
Tube | 3600 | Active | Through Hole | 5VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C |
