Diodes-Rectifiers-Single
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXPSC06650DJDIODE SCHOTTKY 650V 6A DPAK |
3,428 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Surface Mount | 190pF @ 1V, 1MHz | 0 ns | 200 µA @ 650 V | 650 V | 6A | 175°C (Max) | 1.7 V @ 6 A | |
|
|
NXPSC06650XQDIODE SCHOTTKY 650V 6A TO220F |
3,453 | 0.00 |
|
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Through Hole | 190pF @ 1V, 1MHz | 0 ns | 200 µA @ 650 V | 650 V | 6A | 175°C (Max) | 1.7 V @ 6 A | |
|
NXPSC08650BJDIODE SCHOTTKY 650V 8A D2PAK |
2,651 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Surface Mount | 260pF @ 1V, 1MHz | 0 ns | 230 µA @ 650 V | 650 V | 8A | 175°C (Max) | 1.7 V @ 8 A | |
|
|
NXPSC08650DJDIODE SCHOTTKY 650V 8A DPAK |
2,587 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Surface Mount | 260pF @ 1V, 1MHz | 0 ns | 230 µA @ 650 V | 650 V | 8A | 175°C (Max) | 1.7 V @ 8 A | |
|
|
NXPSC08650XQDIODE SCHOTTKY 650V 8A TO220F |
2,700 | 0.00 |
|
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Through Hole | 260pF @ 1V, 1MHz | 0 ns | 230 µA @ 650 V | 650 V | 8A | 175°C (Max) | 1.7 V @ 8 A | |
|
|
NXPSC10650BJDIODE SCHOTTKY 650V 10A D2PAK |
2,676 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Surface Mount | 300pF @ 1V, 1MHz | 0 ns | 250 µA @ 650 V | 650 V | 10A | 175°C (Max) | 1.7 V @ 10 A | |
|
|
NXPSC10650DJDIODE SCHOTTKY 650V 10A DPAK |
2,313 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Surface Mount | 300pF @ 1V, 1MHz | 0 ns | 250 µA @ 650 V | 650 V | 10A | 175°C (Max) | 1.7 V @ 10 A | |
|
|
NXPSC10650XQDIODE SCHOTTKY 650V 10A TO220F |
3,233 | 0.00 |
|
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Through Hole | 300pF @ 1V, 1MHz | 0 ns | 250 µA @ 650 V | 650 V | 10A | 175°C (Max) | 1.7 V @ 10 A | |
|
|
OF4487JOF4487 DPAK REEL 13" Q1 T1 |
2,141 | 0.00 |
|
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
BYC30DW-600PQBYC30DW-600PQ/TO247/STANDARD MAR |
2,858 | 0.00 |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 33 ns | 10 µA @ 600 V | 600 V | 30A | 175°C (Max) | 3.3 V @ 30 A | |
|
|
BYC30W-600PT2QBYC30W-600PT2Q/TO247/STANDARD MA |
2,055 | 0.00 |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 34 ns | 10 µA @ 600 V | 600 V | 30A | 175°C (Max) | 2.75 V @ 30 A | |
|
BYC8-1200PQBYC8-1200PQ/TO-220AC/STANDARD MA |
3,998 | 0.00 |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 55 ns | 100 µA @ 1200 V | 1200 V | 8A | 175°C (Max) | 3.2 V @ 8 A | |
|
|
BYV40W-600PQBYV40W-600PQ/TO247/STANDARD MARK |
2,644 | 0.00 |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 79 ns | 10 µA @ 600 V | 600 V | 40A | 175°C (Max) | 1.6 V @ 40 A | |
|
|
BYC15-1200PQBYC15-1200PQ/TO-220AC/STANDARD M |
3,737 | 0.00 |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 61 ns | 100 µA @ 1200 V | 1200 V | 15A | 175°C (Max) | 3.2 V @ 15 A | |
|
BYR5D-1200PJBYR5D-1200PDPAK Q1 T1 STANDARD M |
2,867 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 62 ns | 50 µA @ 1200 V | 1200 V | 5A | 175°C (Max) | 2.2 V @ 5 A | |
|
|
NXPSC04650DJDIODE SCHOTTKY 650V 4A DPAK |
2,274 | 0.00 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Discontinued at Digi-Key | Surface Mount | 130pF @ 1V, 1MHz | 0 ns | 170 µA @ 650 V | 650 V | 4A | 175°C (Max) | 1.7 V @ 4 A | |
|
|
BYV10-600PQDIODE GEN PURP 600V 10A TO220AC |
3,866 | 0.79 |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 10 µA @ 600 V | 600 V | 10A | 175°C (Max) | 2 V @ 10 A | |
|

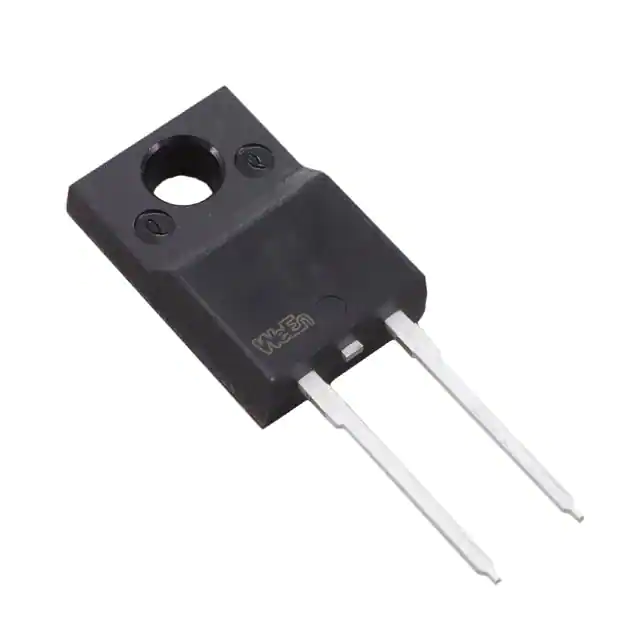

BYT79X-600PQDIODE GEN PURP 600V 15A TO220F |
4,670 | 1.12 |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 60 ns | 10 µA @ 600 V | 600 V | 15A | 175°C (Max) | 1.38 V @ 15 A | |
|
|
WNSC2D08650TJSILICON CARBIDE SCHOTTKY DIODE |
3,000 | 2.66 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 260pF @ 1V, 1MHz | 0 ns | 40 µA @ 650 V | 650 V | 8A | 175°C | 1.7 V @ 8 A | |
|
|
BYC15-600PQDIODE GEN PURP 600V 15A TO220AC |
4,835 | 1.32 |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 18 ns | 10 µA @ 600 V | 600 V | 15A | 175°C (Max) | 3.2 V @ 15 A |
