Diodes-Rectifiers-Single
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CURMT101-HFDIODE GEN PURP 50V 1A SOD123H |
2,230 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 70pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 1A (DC) | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
CURMT102-HFDIODE GEN PURP 100V 1A SOD123H |
2,095 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 70pF @ 4V, 1MHz | 50 ns | 5 µA @ 100 V | 100 V | 1A (DC) | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
CURMT105-HFDIODE GEN PURP 600V 1A SOD123H |
2,228 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 70pF @ 4V, 1MHz | 75 ns | 5 µA @ 600 V | 600 V | 1A (DC) | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
CURMT106-HFDIODE GEN PURP 800V 1A SOD123H |
3,086 | 0.00 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 70pF @ 4V, 1MHz | 75 ns | 5 µA @ 800 V | 800 V | 1A (DC) | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
CDBD8060-GDIODE SCHOTTKY 60V 8A TO263 |
4,000 | 0.00 |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 5 mA @ 60 V | 60 V | 8A (DC) | -50°C ~ 150°C | 750 mV @ 8 A | |
|
|
CDBD8100-GDIODE SCHOTTKY 100V 8A TO263 |
3,571 | 0.00 |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 5 mA @ 100 V | 100 V | 8A (DC) | -50°C ~ 150°C | 850 mV @ 8 A | |
|
CDBC540-GDIODE SCHOTTKY 40V 5A DO214AB |
2,156 | 0.62 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 5A | -40°C ~ 125°C | 550 mV @ 5 A | |
|
|
CDBC540-HFDIODE SCHOTTKY 40V 5A DO214AB |
2,475 | 0.62 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 380pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 5A | -50°C ~ 150°C | 550 mV @ 5 A | |
|
|
CDBC340-GDIODE SCHOTTKY 40V 3A DO214AB |
62,900 | 0.50 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | 125°C (Max) | 500 mV @ 3 A | |
|
CDBA340-GDIODE SCHOTTKY 40V 3A DO214AC |
3,848 | 0.37 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 150°C | 500 mV @ 3 A | |
|

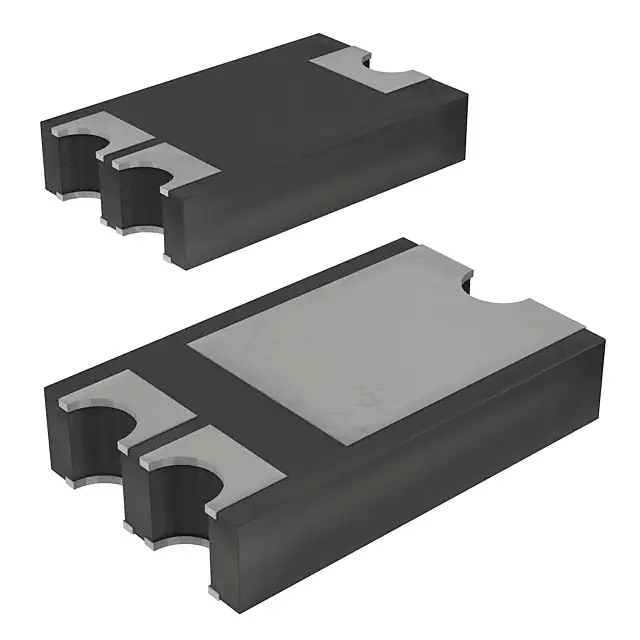

CDBZ310200-HFDIODE SCHOTTKY 200V 10A TO277 |
2,301 | 0.00 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 200 V | 200 V | 10A | -55°C ~ 150°C | 900 mV @ 10 A | |
|
|
CDBA360-HFDIODE SCHOTTKY 60V 3A DO214AC |
2,171 | 0.39 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 250pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 3A | -50°C ~ 150°C | 700 mV @ 3 A | |
|
|
CDBZ310200H-HFDIODE SCHOTTKY 200V 10A TO277 |
3,614 | 0.00 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 200 V | 200 V | 10A | -55°C ~ 150°C | 820 mV @ 10 A | |
|
CDBB1100-GDIODE SCHOTTKY 100V 1A DO214AA |
2,070 | 0.38 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 100 V | 100 V | 1A | 125°C (Max) | 850 mV @ 1 A | |
|
|
CDBZ31060H-HFDIODE SCHOTTKY 60V 10A TO277 |
2,157 | 0.00 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 60 V | 60 V | 10A | -55°C ~ 150°C | 650 mV @ 10 A | |
|
|
CDBZ320200-HFDIODE SCHOTTKY 200V 20A TO277 |
3,268 | 0.00 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 200 V | 200 V | 20A | -55°C ~ 150°C | 930 mV @ 20 A | |
|

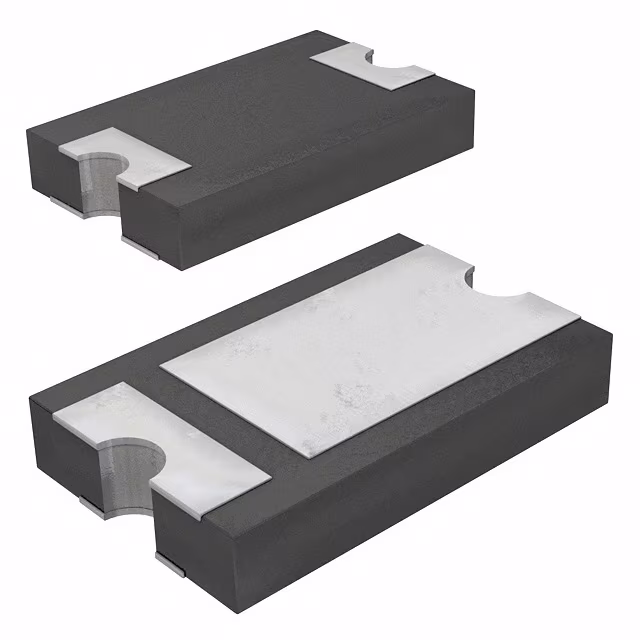

CDBZ5T30100-HFDIODE SCHOTTKY 100V 30A SMC |
3,843 | 0.00 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 50 µA @ 100 V | 100 V | 30A | -55°C ~ 150°C | 850 mV @ 30 A | |
|
CDBZ61045-HFDIODE SCHOTTKY 45V 10A TO252 |
2,798 | 0.00 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 550 mV @ 10 A | |
|
|
CDBA240-HFDIODE SCHOTTKY 40V 2A DO214AC |
2,160 | 0.47 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 2A | 125°C (Max) | 500 mV @ 2 A | |
|
|
CDBA360-GDIODE SCHOTTKY 60V 3A DO214AC |
2,162 | 0.39 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | 700 mV @ 3 A |
