Diodes-Rectifiers-Single
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBYV26C-E3/54DIODE GEN PURP 600V 1A DO204AL |
2,223 | 0.54 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 5 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 2.5 V @ 1 A | |
|
VS-T70HF40DIODE GEN PURP 400V 70A D-55 |
3,024 | 30.09 |
|
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 15 mA @ 400 V | 400 V | 70A | - | - | |
|

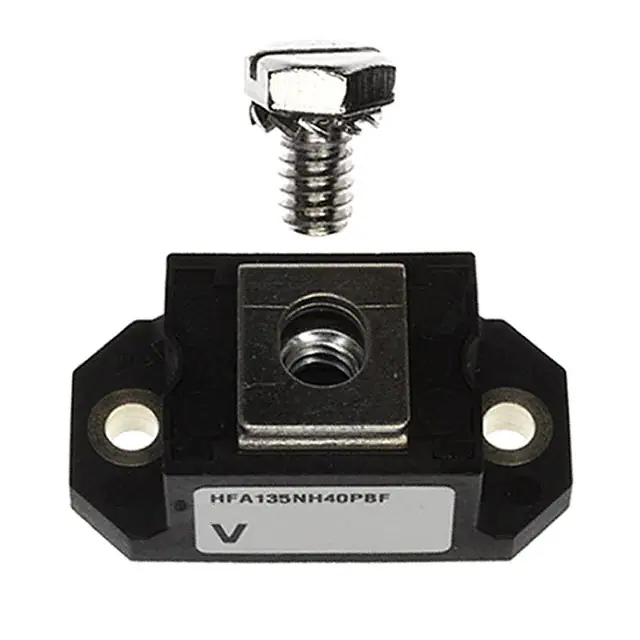

VS-HFA135NH40PBFDIODE GEN PURP 400V 275A HALFPAK |
2,564 | 30.38 |
|
Datasheet |
Bulk | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 120 ns | 3 mA @ 400 V | 400 V | 275A | - | 2 V @ 270 A |
|
1N3612GP-M3/73DIODE GEN PURPOSE DO-204AL |
3,295 | 0.00 |
|
Tape & Box (TB) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
|
1N3613GP-M3/73DIODE GEN PURPOSE DO-204AL |
3,164 | 0.00 |
|
Tape & Box (TB) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
|
1N3614GP-M3/73DIODE GEN PURPOSE DO-204AL |
3,993 | 0.00 |
|
Tape & Box (TB) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
GF1M-E3/5CADIODE GEN PURP 1KV 1A DO214BA |
3,305 | 0.64 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.2 V @ 1 A |
|
|
VS-T40HFL100S05DIODE GEN PURP 1KV 40A D-55 |
2,932 | 31.19 |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 500 ns | 100 µA @ 1000 V | 1000 V | 40A | - | - | |
|
AS3BJ-M3/52TDIODE GEN PURP 600V 3A DO214AA |
2,152 | 0.43 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 1.5 µs | 20 µA @ 600 V | 600 V | 3A | -55°C ~ 175°C | 1.05 V @ 3 A | |
|
VS-2EJH02HM3/6ADIODE GEN PURP 200V 2A DO221AC |
3,955 | 0.53 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 2 µA @ 200 V | 200 V | 2A | -65°C ~ 175°C | 930 mV @ 2 A |
|
|
VS-T70HFL60S02DIODE GEN PURP 600V 70A D-55 |
3,965 | 31.29 |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 200 ns | 100 µA @ 600 V | 600 V | 70A | - | - | |
|
BYG24D-E3/TRDIODE AVALANCHE 200V 1.5A |
3,367 | 0.56 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | - | 140 ns | 1 µA @ 200 V | 200 V | 1.5A | -55°C ~ 150°C | 1.25 V @ 1.5 A | |
|

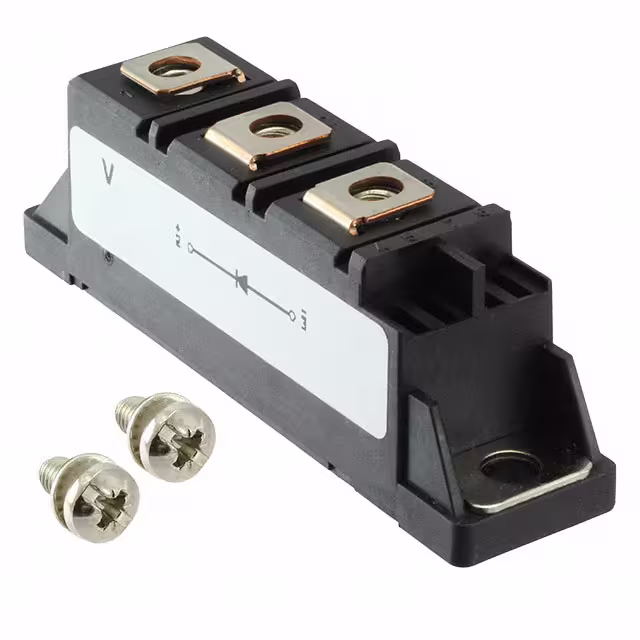

VS-VSKE91/12DIODE GP 1.2KV 100A ADD-A-PAK |
2,597 | 37.99 |
|
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 10 mA @ 1200 V | 1200 V | 100A | -40°C ~ 150°C | 1.55 V @ 314 A | |
|
|
SS23-E3/52TDIODE SCHOTTKY 30V 2A DO214AA |
3,408 | 0.44 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 30 V | 30 V | 2A | -65°C ~ 125°C | 500 mV @ 2 A | |
|
VS-150K60ADIODE GEN PURP 600V 150A DO205AA |
2,876 | 38.76 |
|
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 35 mA @ 600 V | 600 V | 150A | -40°C ~ 200°C | 1.33 V @ 471 A | |
|
VS-30BQ040-M3/9ATDIODE SCHOTTKY 3.0A SMC |
2,702 | 0.98 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 230pF @ 5V, 1MHz | - | 500 µA @ 40 V | 40 V | 3A | -55°C ~ 150°C | 530 mV @ 3 A | |
;;2.jpg)
|
BYM13-30-E3/96DIODE SCHOTTKY 30V 1A DO213AB |
2,389 | 0.57 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 110pF @ 4V, 1MHz | - | 500 µA @ 30 V | 30 V | 1A | -55°C ~ 125°C | 500 mV @ 1 A | |
|
|
BYM13-50-E3/96DIODE SCHOTTKY 50V 1A DO213AB |
2,672 | 0.57 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 500 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 700 mV @ 1 A | |
|
|
1N3957GP-M3/73DIODE GEN PURPOSE DO-204AL |
3,557 | 0.00 |
|
Tape & Box (TB) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - | ||
|
|
1N4001GPE-M3/73DIODE GEN PURPOSE DO-204AL |
2,630 | 0.00 |
|
Tape & Box (TB) | RoHS | - | - | Obsolete | - | - | - | - | - | - | - | - |
