Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoilType | CoilCurrent | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | Features | MountingType | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A21ACQ12VDC1.6RELAY AUTOMOTIVE SPST NO 1A 12VD |
3,574 | 1.36 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A21ACQ12VDC1.9RRELAY AUTOMOTIVE SPST NO 1A 12VD |
2,937 | 1.39 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A2F1ACQ12VDC1.6RRELAY AUTOMOTIVE FLANGED SPST NO |
3,963 | 1.39 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2F1ACQ12VDC1.9RRELAY AUTOMOTIVE FLANGED SPST NO |
3,005 | 1.39 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A21ACQ12VDC1.6RRELAY AUTOMOTIVE SPST NO 1A 12VD |
3,135 | 1.39 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|

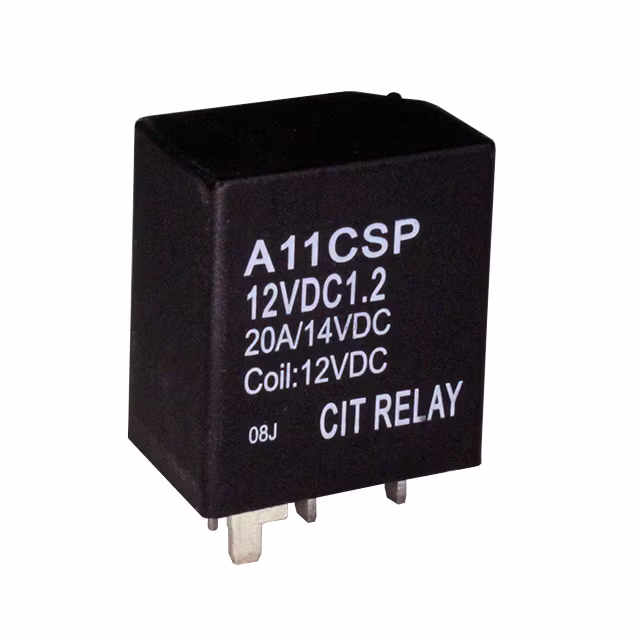

A11CSP12VDC1.2RELAY AUTO SPDT 12VDC PCB |
2,662 | 1.40 |
|
Datasheet |
Tube | A1 | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
A2F1ACQ12VDC1.6DRELAY AUTOMOTIVE FLANGED SPST NO |
3,905 | 1.41 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
A2M1ACQ12VDC1.9RELAY AUTOMOTIVE METAL BRACKET S |
3,538 | 1.41 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2M1ACQ12VDC1.6RELAY AUTOMOTIVE METAL BRACKET S |
3,975 | 1.41 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2F1ACQ12VDC1.9DRELAY AUTOMOTIVE FLANGED SPST NO |
3,262 | 1.41 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A21ACQ12VDC1.9DRELAY AUTOMOTIVE SPST NO 1A 12VD |
2,383 | 1.41 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A21ACQ12VDC1.6DRELAY AUTOMOTIVE SPST NO 1A 12VD |
2,128 | 1.41 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A2F1ACQ24VDC1.6RELAY AUTOMOTIVE FLANGED SPST NO |
3,493 | 1.42 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A21ACQ24VDC1.6RELAY AUTOMOTIVE SPST NO 1A 24VD |
3,081 | 1.42 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
|
A21ACQ24VDC1.9RELAY AUTOMOTIVE SPST NO 1A 24VD |
2,927 | 1.42 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A21ASP12VDC1.9RELAY AUTOMOTIVE SPST NO 1A 12VD |
3,389 | 1.42 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin |
|
|
A2F1ACQ24VDC1.9RELAY AUTOMOTIVE FLANGED SPST NO |
2,166 | 1.42 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A21ASQ12VDC1.9RELAY AUTOMOTIVE SPST NO 1A 12VD |
2,662 | 1.42 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250 (6.3mm) |
|
A2HF1ACQ12VDC1.650AMP AUTOMOTIVE RELAYS FLANGED |
2,814 | 1.42 |
|
Datasheet |
Tray | A2H | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | - | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
|
|
A2F1ASQ12VDC1.9RELAY AUTOMOTIVE FLANGED SPST NO |
2,081 | 1.42 |
|
Datasheet |
Tray | A2 | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250 (6.3mm) |
