Diodes-Rectifiers-Single
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SS352,H3FDIODE GEN PURP 80V 100MA SC76-2 |
56,413 | 0.19 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|
TBAT54,LMDIODE SCHOTTKY 30V 140MA SOT23 |
471 | 0.22 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | 1.5 ns | 2 µA @ 25 V | 30 V | 140mA | 150°C (Max) | 580 mV @ 100 mA | |
|
1SS367,H3FDIODE SCHOTTKY 10V 100MA SC76 |
21,446 | 0.22 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 40pF @ 0V, 1MHz | - | 20 µA @ 10 V | 10 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
1SS385,LF(CTSMALL-SIGNAL SCHOTTKY BARRIER DI |
6,000 | 0.07 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 20pF @ 0V, 1MHz | - | 20 µA @ 10 V | 10 V | 100mA | 125°C (Max) | 500 mV @ 100 mA | |
|
CRS08(TE85L,Q,M)DIODE SCHOTTKY 30V 1.5A SFLAT |
171 | 0.56 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 90pF @ 10V, 1MHz | - | 1 mA @ 30 V | 30 V | 1.5A | -40°C ~ 125°C | 360 mV @ 1.5 A | |
.jpg)
|

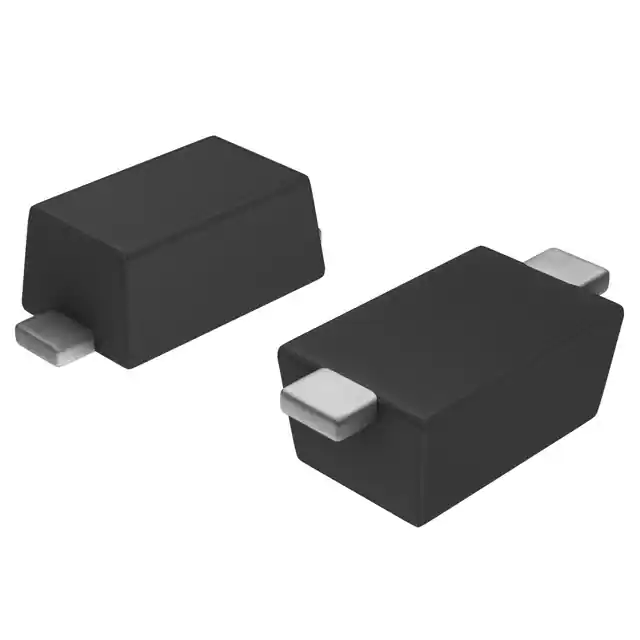

CMF04(TE12L,Q,M)DIODE GEN PURP 800V 500MA MFLAT |
302 | 0.56 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 100 ns | 50 µA @ 800 V | 800 V | 500mA | -40°C ~ 150°C | 2.5 V @ 500 mA | |
|
CUS10F30,H3FDIODE SCHOTTKY 30V 1A USC |
3,412 | 0.36 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 50 µA @ 30 V | 30 V | 1A | 125°C (Max) | 500 mV @ 1 A | |
|
|
1SS403,H3FDIODE GEN PURP 200V 100MA USC |
2,235 | 0.39 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 0V, 1MHz | 60 ns | 1 µA @ 200 V | 200 V | 100mA | 125°C (Max) | 1.2 V @ 100 mA | |
|
|
1SS307(TE85L,F)DIODE GEN PURP 30V 100MA SMINI |
3,369 | 0.40 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 6pF @ 0V, 1MHz | - | 10 µA @ 30 V | 30 V | 100mA | 125°C (Max) | 1.3 V @ 100 mA | |
|
1SS397TE85LFDIODE GEN PURP 400V 100MA SC70 |
3,408 | 0.43 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 500 ns | 1 µA @ 400 V | 400 V | 100mA | 125°C (Max) | 1.3 V @ 100 mA | |
|
|
CUS05F40,H3FDIODE SCHOTTKY 40V 500MA USC |
2,806 | 0.06 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 28pF @ 0V, 1MHz | - | 15 µA @ 40 V | 40 V | 500mA | 150°C (Max) | 810 mV @ 500 mA | |
|
|
CRG04(TE85L,Q,M)DIODE GEN PURP 600V 1A SFLAT |
3,469 | 0.10 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Last Time Buy | Surface Mount | - | - | 10 µA @ 600 V | 600 V | 1A | -40°C ~ 150°C | 1.1 V @ 1 A | |
|
|
CRS20I30A(TE85L,QMDIODE SCHOTTKY 30V 2A SFLAT |
2,762 | 0.15 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 50pF @ 10V, 1MHz | - | 60 µA @ 30 V | 30 V | 2A | 150°C (Max) | 490 mV @ 2 A | |
|
|
BAS316,H3FDIODE GEN PURP 100V 250MA USC |
3,622 | 0.03 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 0.35pF @ 0V, 1MHz | 3 ns | 200 nA @ 80 V | 100 V | 250mA | 150°C (Max) | 1.25 V @ 150 mA | |
|
|
BAS516,H3FDIODE GEN PURP 100V 250MA ESC |
3,504 | 0.03 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 0.35pF @ 0V, 1MHz | 3 ns | 200 nA @ 80 V | 100 V | 250mA | 150°C (Max) | 1.25 V @ 150 mA | |
|
|
CRS14(TE85L,Q,M)DIODE SCHOTTKY 30V 2A S-FLAT |
2,609 | 0.16 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 90pF @ 10V, 1MHz | - | 50 µA @ 30 V | 30 V | 2A | -40°C ~ 150°C | 490 mV @ 2 A | |
|
|
CRS15(TE85L,Q,M)DIODE SCHOTTKY 30V 3A S-FLAT |
2,160 | 0.16 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 90pF @ 10V, 1MHz | - | 50 µA @ 30 V | 30 V | 3A (DC) | -40°C ~ 150°C | 520 mV @ 3 A | |
|
|
CUS521,H3FDIODE SCHOTTKY 30V 200MA USC |
2,382 | 0.04 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 26pF @ 0V, 1MHz | - | 30 µA @ 30 V | 30 V | 200mA | 125°C (Max) | 500 mV @ 200 mA | |
|
|
1SS294,LFDIODE SCHOTTKY 40V 100MA SMINI |
3,465 | 0.07 |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 25pF @ 0V, 1MHz | - | 5 µA @ 40 V | 40 V | 100mA | 125°C (Max) | 600 mV @ 100 mA | |
|
|
CUS10F40,H3FDIODE SCHOTTKY 40V 1A USC |
3,762 | 0.07 |
|
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 74pF @ 0V, 1MHz | - | 20 µA @ 40 V | 40 V | 1A | 150°C (Max) | 670 mV @ 1 A |
